Nitromethane in Drag Racing

Nitromethane Introduction

Drag racing is a form of motor racing where two vehicles compete side-by-side on a straight track (typically a quarter-mile long), with the winner being the first to cross the finish line. Races are extremely short but require enormous acceleration and power. In Top Fuel dragsters (the fastest class), specially-built V8 engines produce on the order of 10,000–12,000 horsepower, accelerating the car from 0 to 100 mph in under a second and covering the quarter-mile in about 4 seconds. To achieve this explosive performance, dragsters burn nitromethane fuel (often called “nitro”) instead of ordinary gasoline. Unlike gasoline, nitromethane carries extra oxygen in its molecular structure, allowing the engine to burn far richer fuel mixtures for a short burst of immense thrust.

A drag racing burnout warms the big rear tires before a run. Top Fuel dragsters like this use nitromethane fuel to generate over 10,000 hp of thrust, reaching 100 mph in under 1 second.

Historically, nitromethane traces back to early experimental racing. In the 1930s, German Grand Prix and land-speed record cars (the Auto Union “Silver Arrows”) ran on fuel blends containing mostly nitromethane (around 85%) to boost power. After World War II, American hot-rodders “reinvented” nitro fuel in the late 1940s. Notably, Vic Edelbrock Sr. and his team added nitromethane to their engine mixes around 1949, dramatically increasing horsepower. By the early 1950s, nitromethane-fueled cars were posting record speeds at Bonneville and even used (legally) at the Indy 500. Over the decades nitromethane became the defining fuel of drag racing’s fastest classes. For example, the famous 426 Hemi engine introduced in 1964 became a “12,000-hp nitromethane-burning monster” that dominated Top Fuel racing. Today, virtually all Top Fuel and Funny Car dragsters run about 90% nitromethane fuel blends for maximum power.

Basic Chemistry of Nitromethane

Nitromethane (CH₃NO₂) is a simple organic molecule: essentially methane (CH₄) with one hydrogen replaced by a nitro group (NO₂). Its chemical formula is CH₃NO₂, and it appears as a colorless, oily liquid at room temperature. The molecule consists of a carbon bound to three hydrogens (a methyl group, H₃C–) attached to a nitro group (–NO₂). The nitro group contains one nitrogen and two oxygen atoms, making the compound highly polar and giving it a relatively high density (about 1.14 g/cm³)e oxygens, nitromethane is oxygen-rich compared to pure hydrocarbons.

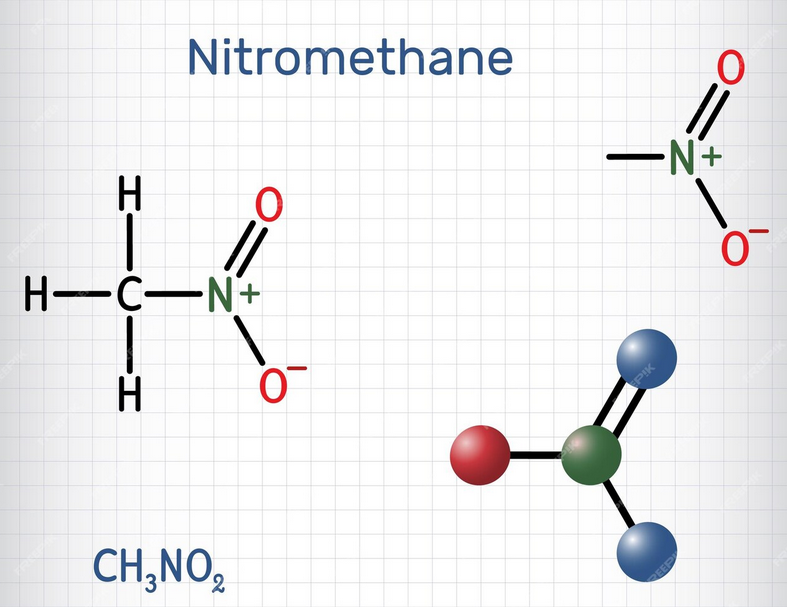

The chemical structure of nitromethane (CH₃NO₂): a methyl group (CH₃–) attached to a nitro group (NO₂). This “oxygen-bearing” structure lets each molecule carry its own oxidizer.

Because each nitromethane molecule already carries oxygens, it can in principle burn without any outside air. In fact, nitromethane can act as a monopropellant – like rocket fuel – combusting on its own. Early rocketry experiments in the 1930s even tested nitromethane as a monopropellant rocket fuel. In practical drag engines, nitromethane is still mixed with air, but the extra oxygen in its –NO₂ group means the engine needs far less atmospheric oxygen to burn it. This built-in oxygen is why burning nitromethane produces such a dramatic power kick.

This polar liquid (dielectric constant εᵣ = 36) exhibits unique properties critical for racing:

• Oxygen self-sufficiency: 52.2% oxygen by mass (vs. 0% in gasoline) 1
• High polarity (μ = 3.5 Debye) enabling solvation of electrophilic species
• Low stoichiometric air requirement (1.7:1 air/fuel ratio vs. 14.7:1 for gasoline) 5

Property	Gasoline	Methanol	Nitromethane
Energy Density (MJ/kg)	44	22.7	11.2
Stoich. Air/Fuel Ratio	14.7:1	6.45:1	1.7:1
Specific Energy (Btu/lb air)	1,300	3,500	6,000
Latent Heat (MJ/kg)	0.35	1.10	0.56

Despite its lower energy density, nitromethane’s oxygen content allows 8.6x more fuel combustion per cylinder charge versus gasoline. Combined with its high heat of vaporization (0.56 MJ/kg), it provides immense charge cooling—effectively acting as a chemical intercooler.

Why Do Top Fuel Dragsters Use Nitromethane? [Molecular Breakdown]

Combustion Chemistry: How Nitromethane Delivers Power

Primary Combustion (Oxygen-dependent):

The key to nitromethane’s explosive power lies in its combustion chemistry. A simplified chemical equation for burning nitromethane is:

4 CH₃NO₂ + 5 O₂ → 4 CO₂ + 6 H₂O + 4 NO (ΔH = -709 kJ/mol)

NO forms as a primary emission, contributing to acid rain and ozone depletion

This reaction shows that one molecule of nitromethane yields carbon dioxide, water, and nitric oxide (NO) when fully burned. Importantly, the nitro-group’s oxygen helps oxidize the carbon and hydrogen, so much less external oxygen is required compared to gasoline. For example, gasoline typically needs about 14.7 kg of air per kg of fuel for ideal combustion, whereas nitromethane only needs about 1.7 kg of air per kg of fuel. In other words, an engine cylinder can ingest over eight times more nitromethane by mass than gasoline in a single stroke (8.7× according to one analysis). This dramatically higher fuel flow is what gives nitromethane its advantage: burning more fuel means releasing more gas and pressure in the engine on each power stroke.

Nitromethane does have only about one-quarter the energy per kg of gasoline, but that is far outweighed by the fact that you can burn so much more of it in the engine. The American Chemical Society explains it well: nitromethane “requires only about one-ninth as much air as gasoline for complete combustion” and even though its energy density is lower, its lower air requirement allows the fuel to produce the high instantaneous thrust needed for drag racing. Engineers often liken nitromethane to adding an extra oxygen tank to the fuel – it’s as if each molecule brings its own mini-oxidizer supply, so the engine can burn a much richer mixture for a short burst of power.

Monopropellant Decomposition (Oxygen-independent):

2 CH₃NO₂ → 2 CO + 2 H₂O + H₂ + N₂ (ΔH = -594 kJ/mol)

This pathway dominates under rich conditions (air/fuel <1.7:1), producing hydrogen gas that ignites upon atmospheric contact—creating drag racing’s signature 3-foot exhaust flames.

Table: Nitromethane Reaction Regimes

Condition	Dominant Chemistry	Power Contribution
Lean (air/fuel >1.7:1)	Complete oxidation to CO₂/H₂O	Lower peak power
Stoichiometric (1.7:1)	Mixed oxidation/decarboxylation	Optimal efficiency
Rich (air/fuel <1.7:1)	Monopropellant decomposition + H₂ combustion	Maximum power

At 90% nitro blends, Top Fuel engines operate in ultra-rich regimes (0.5:1 air/fuel ratio), exploiting both monopropellant decomposition and hydrogen afterburning. This dumps 4 liters/second of fuel—generating 450kg of exhaust thrust via Bernoulli’s principle.

Nitromethane Advantages and Risks

Using nitromethane in engines carries both big advantages and significant risks:

1. High power output: The extra oxygen in nitromethane means an engine can burn far more fuel per cycle, so nitromethane-powered engines generate vastly more thrust than they would on gasoline. In practice, Top Fuel dragsters run on roughly 90% nitromethane (mixed with a little alcohol) to maximize power. For example, even though one gallon of nitromethane has only about 14 kWh of chemical energy (versus ~34 kWh for a gallon of gasoline), the engine’s ability to burn it very rich means the fuel’s effective energy per intake charge is much higher.
2. Intake cooling: Injecting liquid nitromethane into the intake has a cooling effect on the incoming air–fuel mixture (fuel evaporation absorbs heat). This helps keep cylinder temperatures manageable despite the enormous power output. (Drag racers note that nitro fuel can chill the intake charge more than methanol fuel would, allowing denser air and less pre-ignition.)
3. Monopropellant potential: In extreme cases, nitromethane can actually combust without external air (monopropellant), which is why it saw use as a rocket or model fuel. This property means engines can continue burning fuel even if air is temporarily limited, contributing to the “breathtaking” thrust.
4. Explosive hazard: Nitromethane is much more volatile and explosive than ordinary fuel. It was not even recognized as a high explosive until a 1958 railroad tanker accident proved it could detonate with tremendous force. In that incident, investigators found nitromethane to be more energetic than TNT under certain conditions. Racers must handle it with extreme care: spills, leaks, or backfires can trigger violent explosions.
5. Engine stress: Burning so much fuel produces immense pressures and heat. Engines must be built extremely robustly (see below). Even then, things like detonation (uncontrolled explosion in the cylinder) can occur if timing or mixture go awry.
6. Toxic emissions: Combustion of nitromethane produces nitric oxide (NO), a pollutant that contributes to smog, acid rain, and ozone damage. The dark smoke plume from a nitro dragster is partly unburned fuel and partly these nitrogen oxides. (During a race, drivers and crew must wear special gear to protect against toxic fumes and fire.)
7. Regulatory limits: Many racing series outside of Top Fuel ban nitromethane because of its danger and cost. Even in drag racing, safety equipment and rules (like the 1,000-foot race distance) have been tightened over the years to manage the risk.

Drag Racing Impact on Engine Design

Nitromethane demands have led to very specialized drag-racing engines. Top Fuel dragsters use massive V8 engines (often called “Hemi” designs, now made from billet aluminum) displacing around 500 cubic inches (~8.2 liters). Key design features include:

1. Supercharging: An enormous Roots-type blower forces huge volumes of air (and fuel) into the engine. Modern Top Fuel superchargers themselves consume on the order of 600–700 hp just to spin!. The blower builds intake pressures of 60+ psi, packing the cylinder with a dense air–fuel mixture before ignition.
2. Dual ignition: Each cylinder uses two spark plugs (one on each side of the combustion chamber) to ensure the nitro-fuel mixture ignites quickly and fully. Ignition timing is carefully tuned since nitromethane burns slower than gasoline; sparks must fire earlier to make power safely.
3. No transmission: Dragsters have no multi-gear transmission. Instead, a multi-disc clutch transmits power directly to the rear axle. The clutch is tuned to slip just enough to manage tire grip. In effect, the engine is “locked” to the drive shaft until the end of the run, when the clutch finally locks solid for the short finish.
4. Fuel system: The fuel is injected through dozens of nozzles (PopMech notes 58 open nozzles in the intake) to spray the fuel–air mix into the engine. About 5 gallons of nitromethane may be dumped in during a 4-second run, at roughly 100 gallons per minute flow!
5. Structural strength: The engine block, crankshaft, and other parts are built like tanks. The classic Chrysler 426 Hemi V8, for example, provided a deep-skirt iron block that could survive the brutal forces. (Modern blocks use billet aluminum but keep very thick walls.) Every moving part is extremely sturdy – even then, engines often break after just a few runs.
6. Unique components: For instance, the bottom end uses roller bearings on the cam instead of flat tappets to handle the extra load. The massive pistons and rods are steel or billet. Ignition components must handle much hotter, more corrosive combustion.

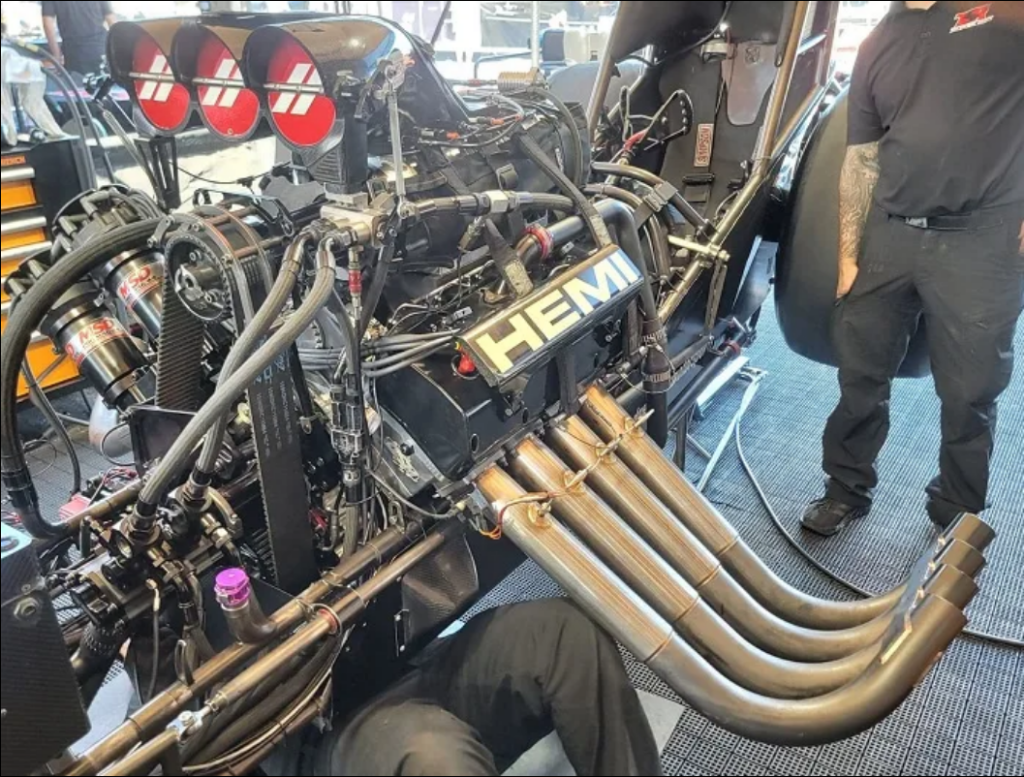

A high-performance drag racing engine (426 Hemi) on display. Modern nitro dragster motors are based on this 1960s design but beefed up to ~10,000+ hp, with dual spark plugs per cylinder and huge superchargers.

All these design choices are driven by nitromethane’s characteristics. The NHRA notes that today’s drag racing engines, evolved from that 426 Hemi, “have evolved into the billet-aluminum 12,000-hp nitromethane-burning monsters that power all Top Fuel dragsters and nitro Funny Cars”. In short, nitromethane requires engines that can ingest a huge rich charge, ignite it reliably, and survive the immense pressures – making Top Fuel machinery some of the most extreme race engines ever built.

Nitromethane Modern Usage in Racing

Today, nitromethane remains the exclusive fuel of Top Fuel and Funny Car classes, and key to their continued records. Top Fuel dragsters routinely produce over 11,000 hp and still break the 4-second mark on the quarter-mile. Drivers launch at about 5.6 g of acceleration and reach speeds above 330 mph. Funny Cars (the flip-top, body-silhouette class) use essentially the same nitro engines and post similar times and speeds. Beyond NHRA drag racing, nitromethane is used in professional drag boat and motorcycle events, as well as in scaled dragsters and model racing (control-line airplanes often mix nitro in their methanol fuel).

See Through Engine on NITROMETHANE – Blow Up Attempts 1 -9 Crazy !

However, its use is tightly controlled. No ordinary street or circuit racers can use it – it is strictly limited to the fastest drag racing categories. Even in Top Fuel, safety regulations (like nitro-resistant fuel lines, fire-suppression systems, and shorter track distances) are necessary because of the dangers described above. But for those split-second runs down the strip, nitromethane’s explosive chemistry remains the secret sauce. It delivers the raw science behind the spectacle: a liquid that literally brings its own oxygen to the party, ignites in a flash, and propels a car with rocket-like force.

Sources: Authoritative chemistry and racing references have been used throughout, including chemical analyses and drag racing histories, as well as Britannica’s overview of drag racing. These explain nitromethane’s properties, its role in motorsport, and the evolution of nitro-burning drag engines.

Conclusion. Controlled Chaos.

Nitromethane epitomizes chemistry’s race engineering paradox: a molecule that empowers and destroys, creates and corrodes. Its –NO₂ group—simultaneously oxidizer and molecular anchor—enables power densities that warp metallurgy, yet demands sacrificial engines with lifespans measured in seconds. As ternary blends and catalytic aftertreatment evolve, nitro’s fiery legacy continues its molecular dance at drag racing’s bleeding edge—where every 3.6-second pass celebrates chemistry’s most volatile performance art.
