Introduction
A batch reactor is a widely used vessel in the chemical sector, known for its flexibility despite its somewhat misleading name. It supports diverse operations such as dissolving solids, mixing products, chemical reactions, batch distillation, crystallization, liquid-liquid extraction, and polymerization. This section focuses on its application in producing psychoactive substances.

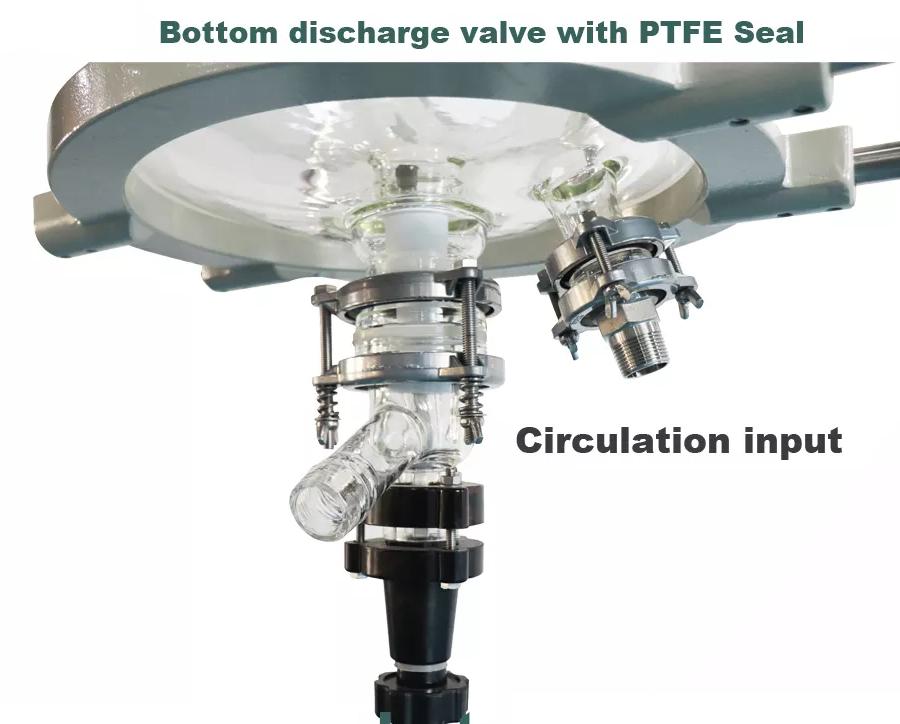

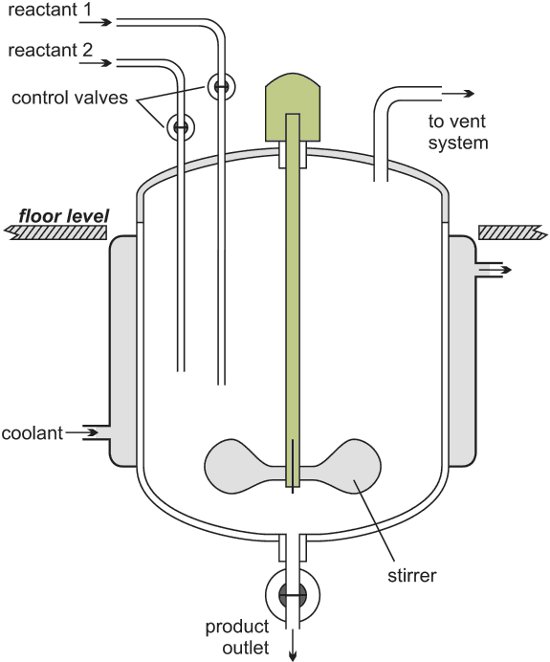

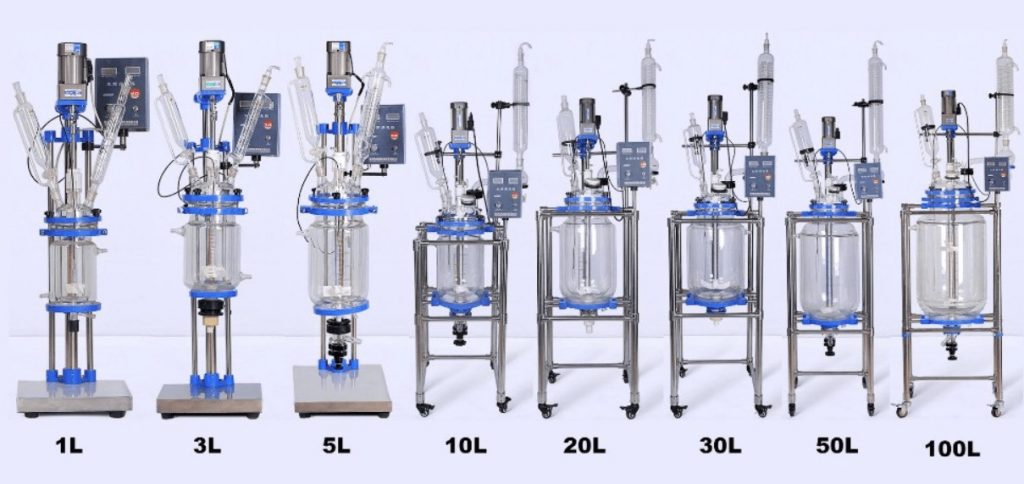

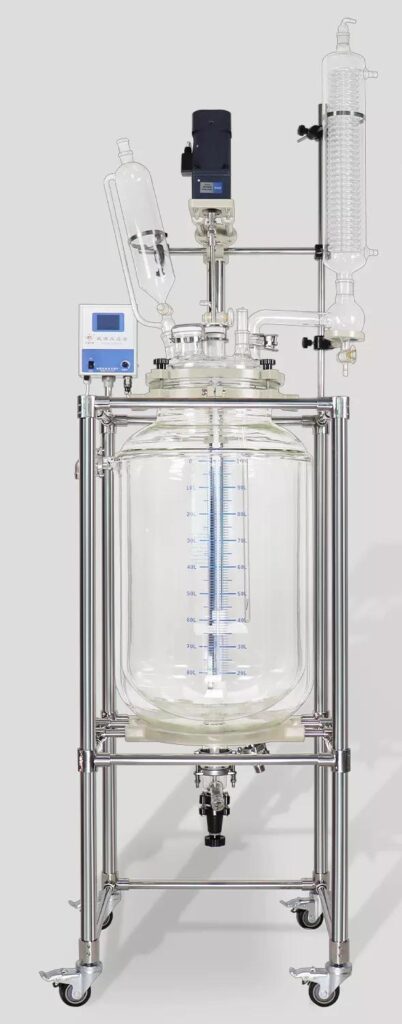

A standard batch reactor includes a tank with an integrated stirrer and a heating/cooling system. These reactors vary in size, from less than 1 liter to over 15,000 liters, and are made from materials like steel, stainless steel, glass-lined steel, glass, or exotic alloys. Liquids and solids are typically added through top ports, while gases and vapors exit via top connections or a condenser. Liquids are discharged from the bottom. The reactor’s versatility allows it to perform multiple operations in one vessel without breaking containment, making it ideal for processing hazardous or potent compounds.
In labs, batch reactors are common for chemical reactions, where reactants are mixed in containers like test tubes or flasks, heated, cooled, and purified as needed. Industrial applications follow a similar process but involve larger reactors and greater reactant volumes.
Applications in Drug Manufacturing
Producing narcotic or potent substances requires chemical synthesis. For small-scale production, compact vessels like pear-shaped or two-/three-necked flasks suffice. However, scaling up introduces challenges such as managing larger reaction volumes, enhancing heat transfer, improving mixing, and ensuring efficient loading and unloading of reagents. These issues are addressed by selecting an appropriate batch reactor. This section explains the equipment, its operation, maintenance, and selection criteria.

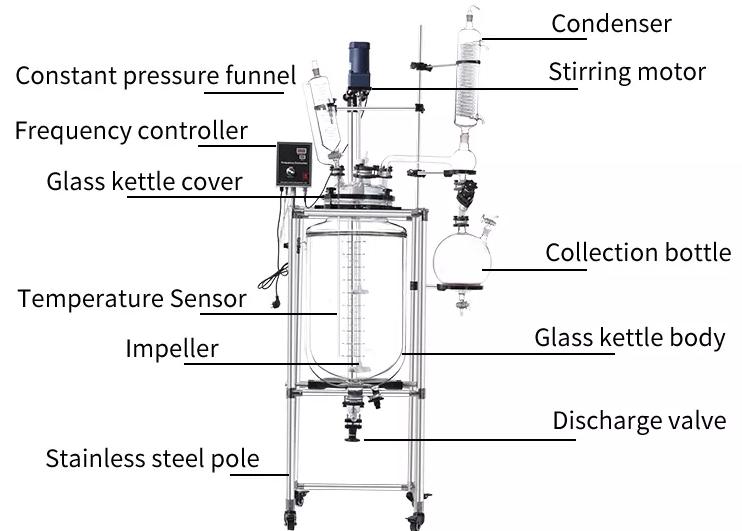

Components of a Batch Reactor
Batch reactors consist of several key components, each serving a specific function:
Tank

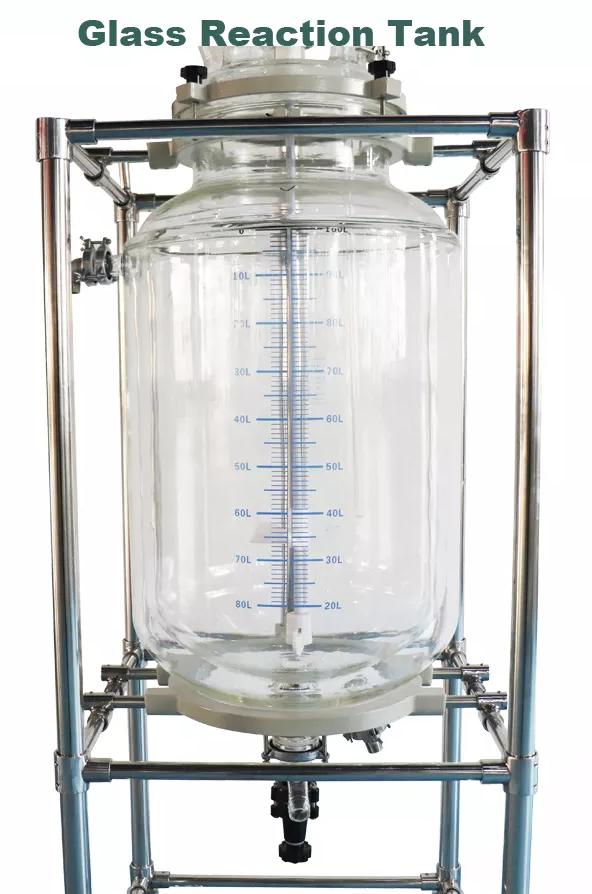

The tank is the core of the reactor, where chemical reactions occur. It provides the environment for reactants to combine and form the desired product.
Stirrer

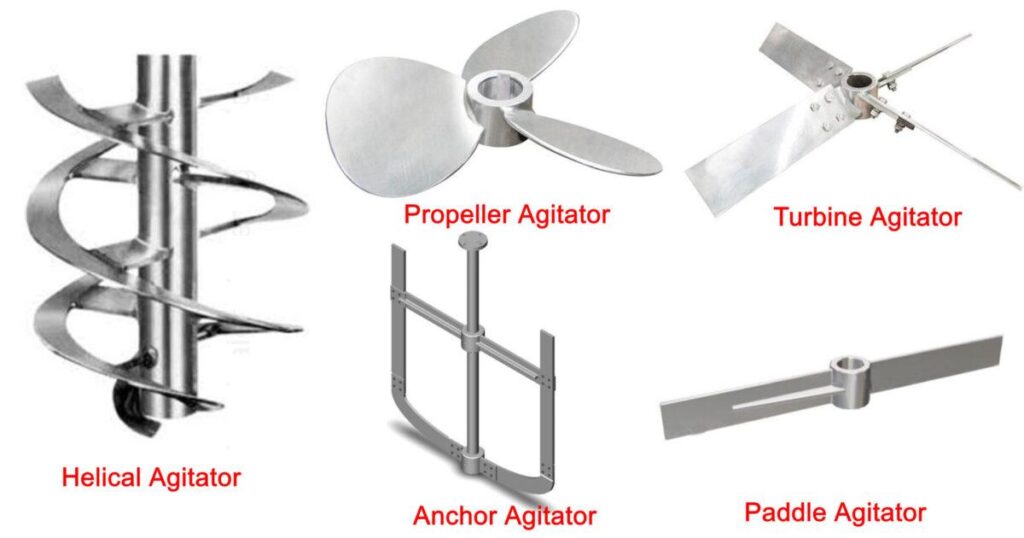

The stirrer ensures uniform mixing of reactants within the tank, promoting consistent reactions.
Heat Exchanger
The heat exchanger regulates the temperature by supplying heat or cooling as required for the reaction. Effective temperature control is critical, especially during scale-up. The system must maintain the desired bulk product temperature and respond promptly to changes in heating or cooling demands. Additionally, the reactor wall temperature must be controlled to avoid damaging the product. Typically, a jacket surrounds the reactor, circulating heat transfer fluid, with larger reactors using multiple injection points for better fluid distribution.
Inlet and Outlet Pipes
Inlet pipes deliver reactants into the tank, while outlet pipes release the final product.
Control System
The control system allows precise monitoring and adjustment of variables like rotation speed, temperature, and reaction duration.
Additional Equipment

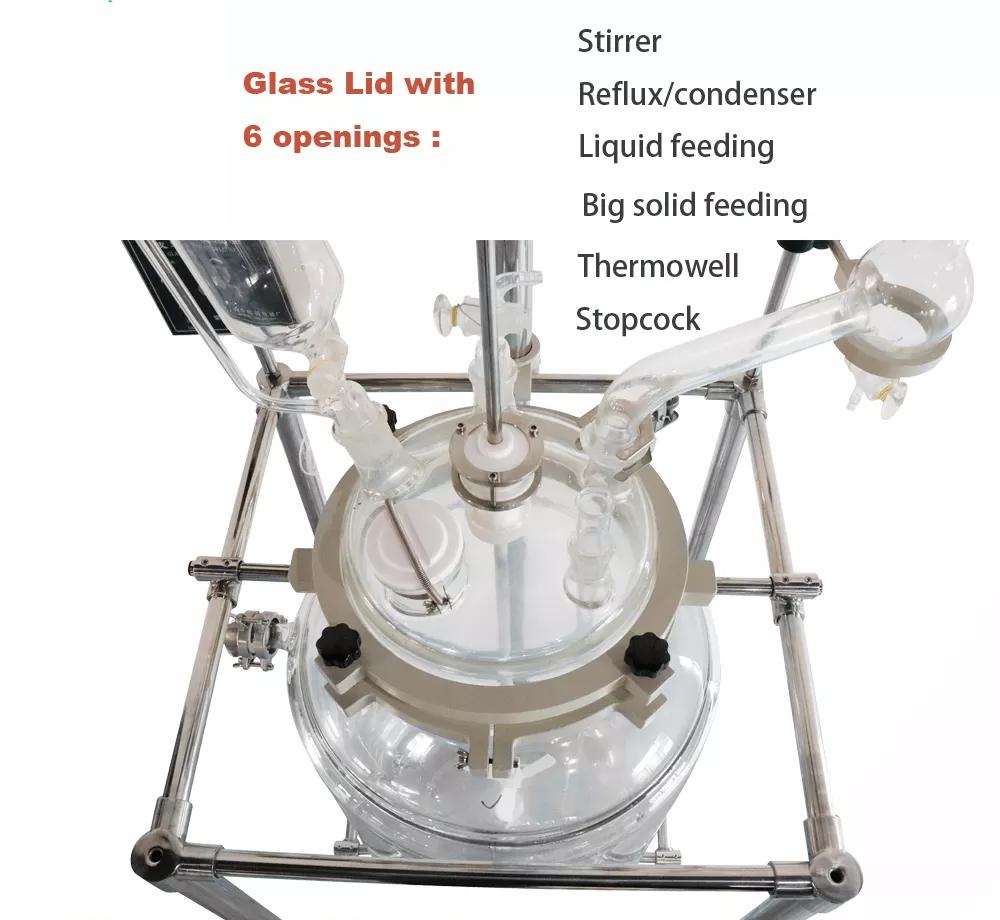

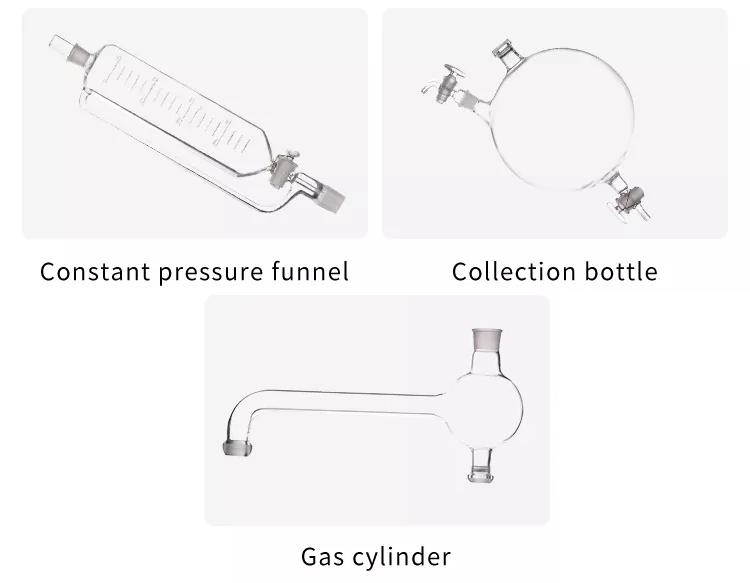

Supplementary components include reflux condensers, additional funnels, adapters, gas pipes, and collection flasks.
How Batch Reactors Operate
Step 1: Setup
Begin by configuring the reactor according to the product’s specifications and preparing the reactants. Once ready, introduce the reactants into the tank via the inlet or an additional funnel.
Step 2: Mixing
The stirrer activates to blend the reactants, while the heat exchanger provides the necessary heating or cooling. The reaction proceeds under stable conditions, with the mixing duration varying based on the reactants used.
Step 3: Product Release
Once the reaction is complete, the reactor discharges the product mixture, maintaining consistent conditions from input to output.
Benefits of Batch Reactors
Batch reactors offer several advantages:
- User-Friendly: Their simple design and intuitive control systems make them easy to operate.
- Versatile: They can process a wide variety of chemicals for different psychoactive substances.
- Durable: Constructed from high-strength materials, they withstand the rigors of chemical reactions.
- Precise Control: They enable accurate management of reaction variables like temperature and pressure.
Maintaining a Batch Reactor
Regular maintenance is essential to ensure optimal performance and longevity. Clean the reactor to remove residues, lubricate moving parts to prevent wear, and inspect components regularly to identify parts needing replacement. A maintenance schedule, supported by predictive software, can monitor performance and flag issues.
Choosing a Batch Reactor
When selecting a batch reactor, consider the following:
- Model Reliability: Opt for trusted models recommended by industry peers.
- Residence Time: Ensure the reactor can handle the reaction duration for your specific reactants, with glass reactors often preferred for drug manufacturing.
- Capacity: Choose a reactor size that matches the volume of reactants you plan to process.
- Temperature and Pressure: Verify that the reactor meets the temperature and pressure requirements of your synthesis.
Factors Influencing Batch Reactor Costs
Budgeting for a batch reactor involves considering:
- Quality: Higher-quality reactors command higher prices.
- Capacity: Larger reactors capable of handling greater volumes are more expensive.
Batch reactors typically range in cost from $500 to $250,000, depending on these factors.
Conclusion
In wrapping up, batch reactors stand out as indispensable tools in the chemical industry, particularly for crafting psychoactive substances. Their ability to handle diverse processes with precision and flexibility makes them a go-to choice for both lab and industrial settings. By carefully selecting a reactor based on factors like capacity, durability, and temperature control, manufacturers can streamline production while ensuring safety and efficiency. With proper maintenance and an understanding of their operational nuances, batch reactors can reliably serve as the backbone of complex chemical synthesis for years to come.
