Introduction

Vacuum filtration, also referred to as suction filtration, is a fundamental laboratory technique designed to separate solids from liquid mixtures, particularly when the solid is the target product, such as in crystallization. This method shares similarities with gravity filtration, where a mixture is poured over a filter paper, but it significantly accelerates the process by employing a vacuum to create a pressure gradient that draws the liquid through the filter more efficiently. This results in faster separation and drier solids, making it a preferred method in many chemical applications.

Theoretical Basis

The operation of vacuum filtration hinges on generating a pressure differential. A water aspirator or diaphragm pump removes air from the vacuum flask and Büchner flask, creating a lower pressure inside these vessels compared to the external atmosphere. This pressure difference pulls the liquid through the filter paper in the Büchner funnel into the vacuum flask, while the solid remains on the filter. The resulting solid is notably drier than that obtained through gravity filtration, enhancing its purity. A critical component is the rubber conical seal, which ensures an airtight connection between the Büchner funnel and the vacuum flask, maintaining the vacuum and preventing stress points where glass components might contact directly.

Advantages and Disadvantages

Vacuum filtration offers several benefits over gravity filtration, but it also has limitations that must be considered.

Aspect	Advantages	Disadvantages
Speed	Completes filtration in under a minute with proper seals and vacuum source.	Strong suction may pull fine crystals through filter paper, causing material loss.
Efficiency	Removes more residual liquid, yielding a purer solid, crucial for crystallization.	Significant material loss in small-scale experiments, making other methods preferable.
Application	Ideal for isolating large crystals and purifying solids in lab and industry.	Less effective for microscale work due to potential loss of fine particles.

The speed and efficiency make vacuum filtration particularly valuable in crystallization, where residual liquid may contain impurities that could re-adhere to the solid upon solvent evaporation. However, the technique is less suitable for very fine crystals, as they may pass through the filter paper, leading to product loss.

Rinsing the Solid

To achieve complete separation of the solid from its surrounding liquid, especially when the liquid does not evaporate easily, rinsing is essential. This is particularly important in crystallization to eliminate impurities that might contaminate the solid if left behind. The rinsing process involves:

• Disconnecting the vacuum.
• Adding a small volume (1-2 mL) of cold solvent to the filter cake (the solid on the filter paper).
• Gently stirring the solid with a glass rod to ensure even solvent distribution.
• Reapplying the vacuum to remove the rinse solvent.

For crystallization, the rinse solvent should be the same as that used in the crystallization process to avoid dissolving the crystals. This step ensures that impurities, such as those causing a yellow tint in a white solid, are effectively removed, as demonstrated in laboratory examples where rinsing restored the solid’s purity.

Vacuum Generation

Suction in vacuum filtration is typically created using one of two devices:

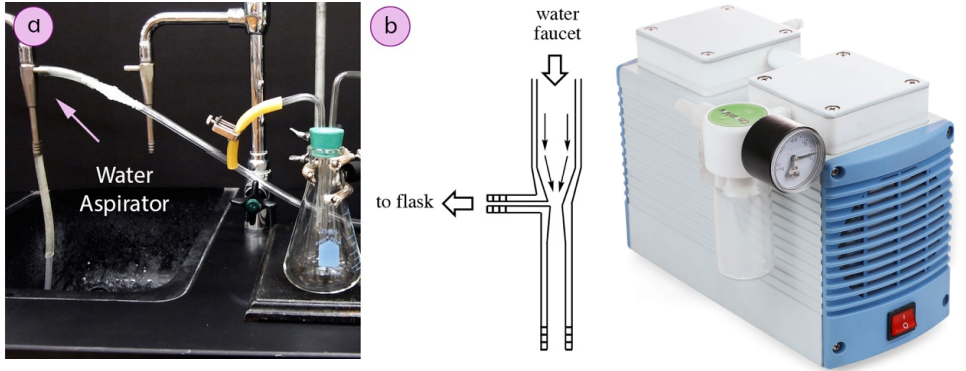

• Water Aspirator: An economical device attached to a water faucet. As water flows through a constricted section of the aspirator, its velocity increases, reducing pressure according to the Venturi Effect (a subset of the Bernoulli Principle). This low pressure evacuates air from the connected flask, creating suction. The strength of the suction depends on the water flow rate.

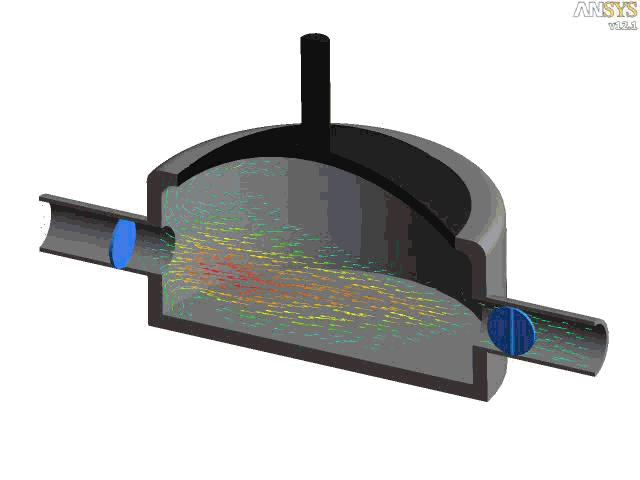

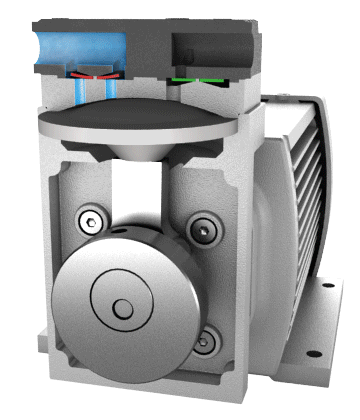

• Diaphragm Vacuum Pump: An environmentally friendly alternative that uses dry compression, eliminating the need for water or oil. These pumps can achieve various vacuum levels, with single-pump systems reaching pressures as low as 50 mbar, and multiple-pump configurations achieving even lower pressures. They are resistant to solvents, making them suitable for chemical applications.

Both systems are effective, but diaphragm pumps are increasingly preferred in modern laboratories for their sustainability and reliability.

Applications

Vacuum filtration is a cornerstone technique in both laboratory and industrial settings. In laboratories, it is commonly used to isolate solid products from reaction mixtures, particularly when the product is suspended in a liquid. The method ensures rapid recovery of the solid, which is drier than that obtained through gravity filtration, making it ideal for subsequent analysis or use. Additionally, it serves as a purification step by removing soluble impurities that remain in the liquid filtrate.

In the pharmaceutical industry, vacuum filtration is widely employed to produce dry solid products. It is often used in conjunction with recrystallization to purify substances, ensuring high-quality outputs. The technique’s efficiency and ability to yield dry, pure solids make it indispensable in drug manufacturing and other chemical processes.

Step-by-Step Procedure

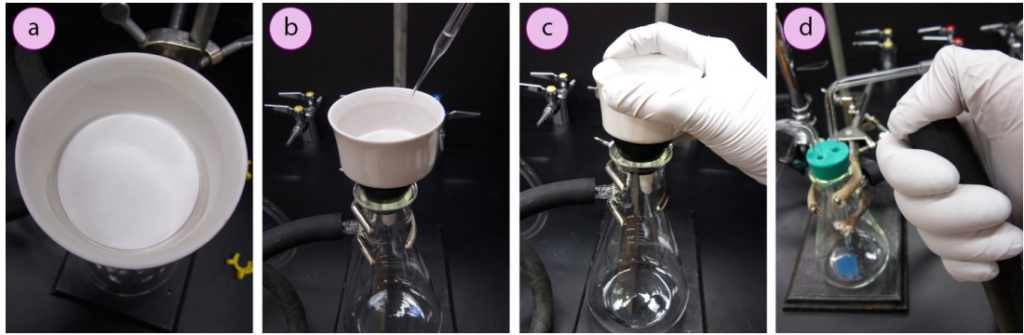

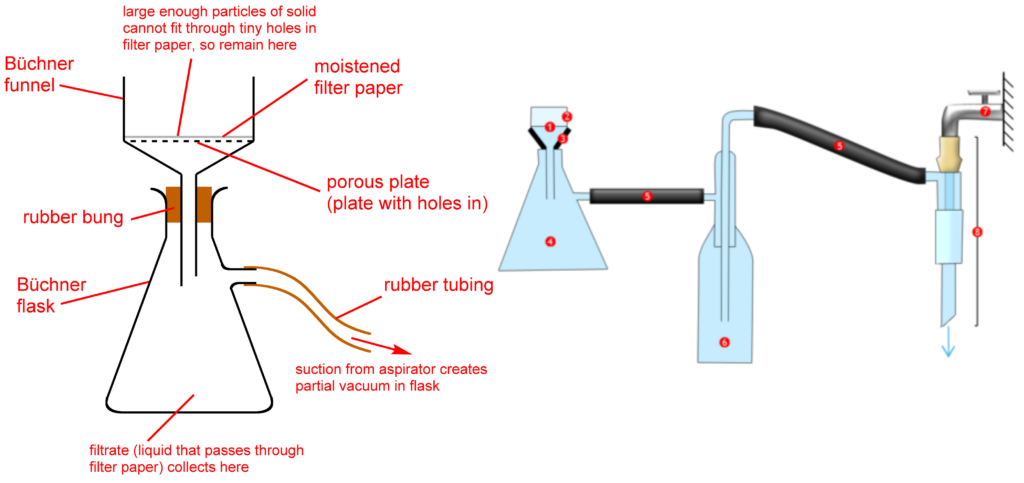

Vacuum Filtration Setup

To perform vacuum filtration effectively, follow these detailed steps:

• Assemble the Apparatus:
  • Secure a side-arm Erlenmeyer flask to a ring stand or latticework.

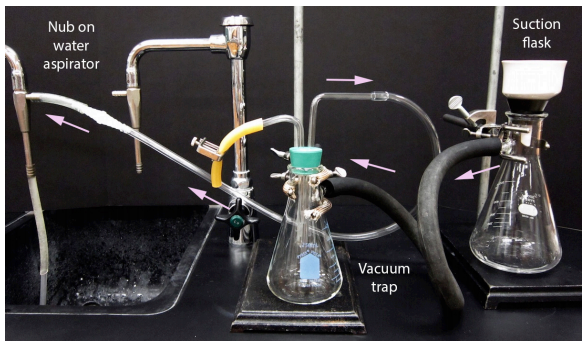

  • Connect a thick-walled rubber hose to the flask’s side arm, linking it to a vacuum trap and then to the water aspirator.
  • Ensure the tubing is free from kinks to maintain strong suction.
  • Note: The vacuum trap prevents back-suction, which could contaminate the filtrate or water supply.

• Prepare the Funnel:

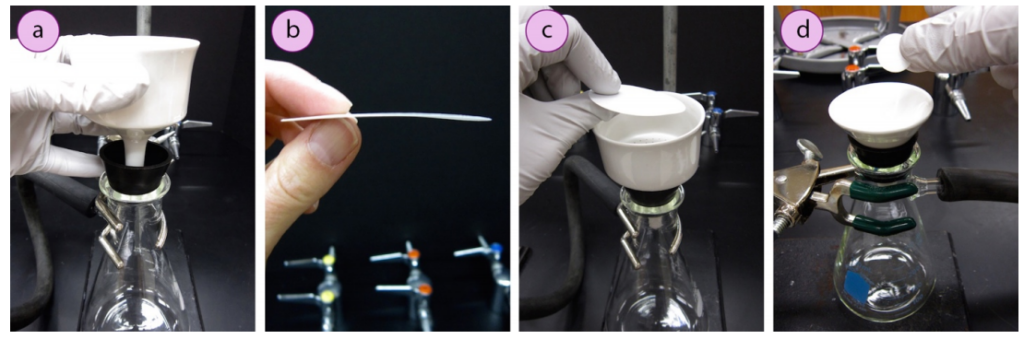

  • Place a rubber sleeve or filter adapter on the flask.

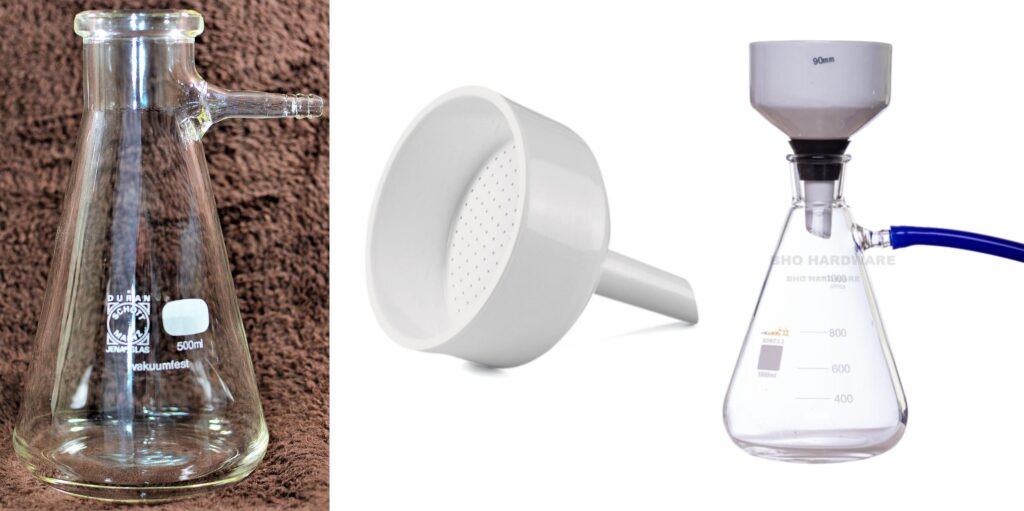

  • Position a Büchner funnel (or Hirsch funnel for small-scale work) onto the adapter.

• Insert the Filter Paper:
  • Select a filter paper that fits the funnel perfectly, covering all holes.
  • Place it concave side down to prevent solids from bypassing the filter.

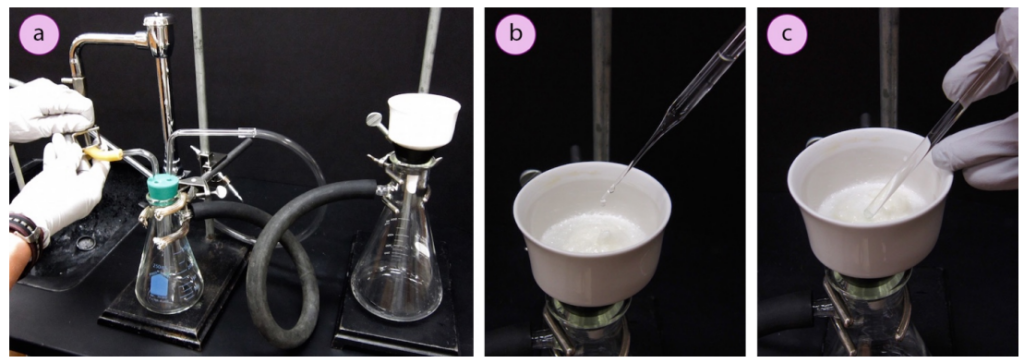

• Activate the Vacuum:
  • Turn on the water faucet to generate suction through the aspirator.
  • Wet the filter paper with 1-2 mL of cold solvent (matching the experiment’s solvent, if applicable).

• Verify Suction:
  • Ensure the solvent drains quickly and the filter paper adheres tightly to the funnel.
  • If suction is weak, press the funnel to improve the seal or check for system leaks.

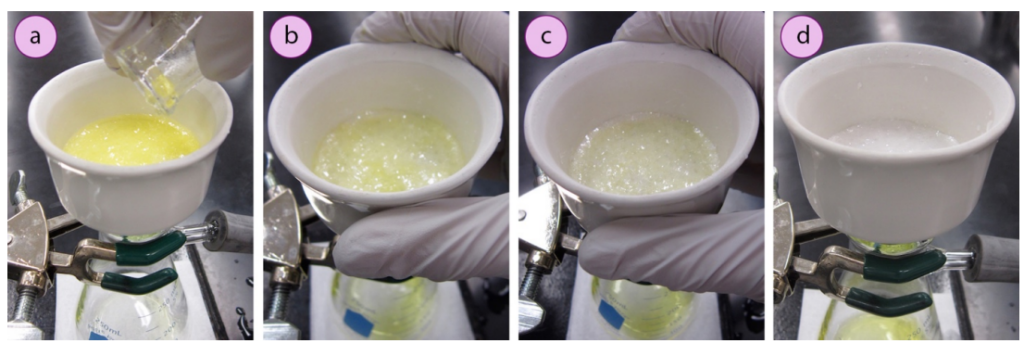

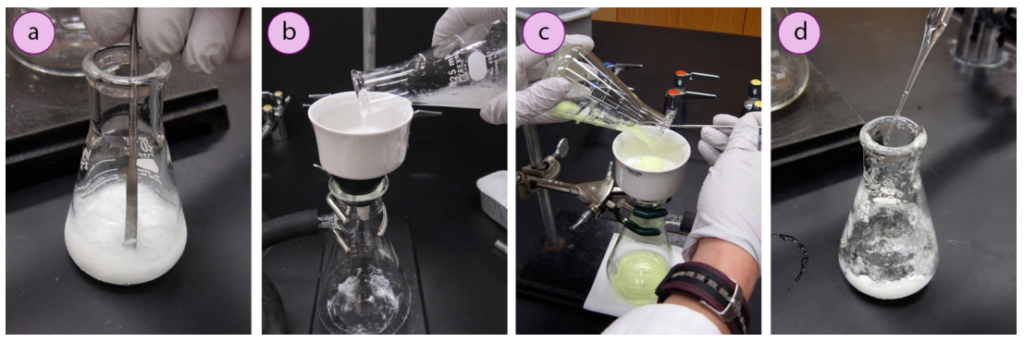

• Transfer the Mixture:
  • Swirl the mixture to dislodge solids from the container.
  • Use a spatula or stirring rod for thick solids.
  • For crystallization mixtures, dry the flask’s exterior to avoid water contamination.

• Pour the Mixture:
  • Swirl and pour the mixture into the funnel, aiming for the center of the filter paper.
  • For thick mixtures, scoop the solid directly onto the filter.
• Rinse Residual Solids:
  • Use 1-2 mL of chilled solvent to transfer any remaining solids from the container to the funnel.
  • Avoid excessive solvent to prevent dissolving crystals.
• Rinse the Filter Cake:
  • Disconnect the vacuum by opening the pinch clamp or removing the tubing.
  • Add 1-2 mL of cold solvent to the filter cake.
  • Stir gently with a glass rod to distribute the solvent.
  • Reapply the vacuum to remove the rinse solvent.
  • Repeat if necessary to ensure purity.

• Complete Filtration:
  • Release the vacuum and turn off the aspirator.

• Collect the Solid:
  • Transfer the filter paper and solid to a pre-weighed watch glass.
  • If the solid is wet, further drying may be required.
• Dry the Solid:
  • Allow the solid to dry overnight in a desiccator for best results.
  • For faster drying:
    • If wet with water and the melting point exceeds 110°C, place in a 110°C oven.
    • If wet with organic solvent, press between fresh filter papers, accepting minor material loss.

This procedure ensures efficient separation and collection of solids, optimized for purity and yield.

Conclusion

In conclusion, suction filtration is a vital technique in laboratory and industrial chemistry, offering a rapid and efficient approach to isolating solids from liquid mixtures, particularly in processes like crystallization. By leveraging a vacuum to enhance speed and produce drier, purer solids, it surpasses gravity filtration in both efficiency and effectiveness, making it indispensable in pharmaceutical manufacturing and other chemical applications. Despite its advantages, careful execution is required to minimize the loss of fine particles and ensure optimal results. Its widespread use in purification and solid recovery underscores its importance, solidifying suction filtration as a cornerstone of modern chemical practices.
