Why Vacuum Is a Big Deal
Setting up a vacuum system in a lab isn’t like hooking up a faucet or a gas line—you can’t just slap it together and call it a day. Every lab’s different. A synthetic chemist needs something totally distinct from what a biologist or an analyst might use. If you try to go with a generic setup, you’re asking for headaches. I’ve seen folks skip the planning stage because they think vacuum systems are no big deal, or maybe they’re just stuck in their ways. But here’s the truth: get it right from the start, and your experiments run smoother, quicker, and safer. This is for anyone setting up a lab—whether you’re a small-scale researcher or a hardcore chemist.
What’s a Vacuum Anyway?

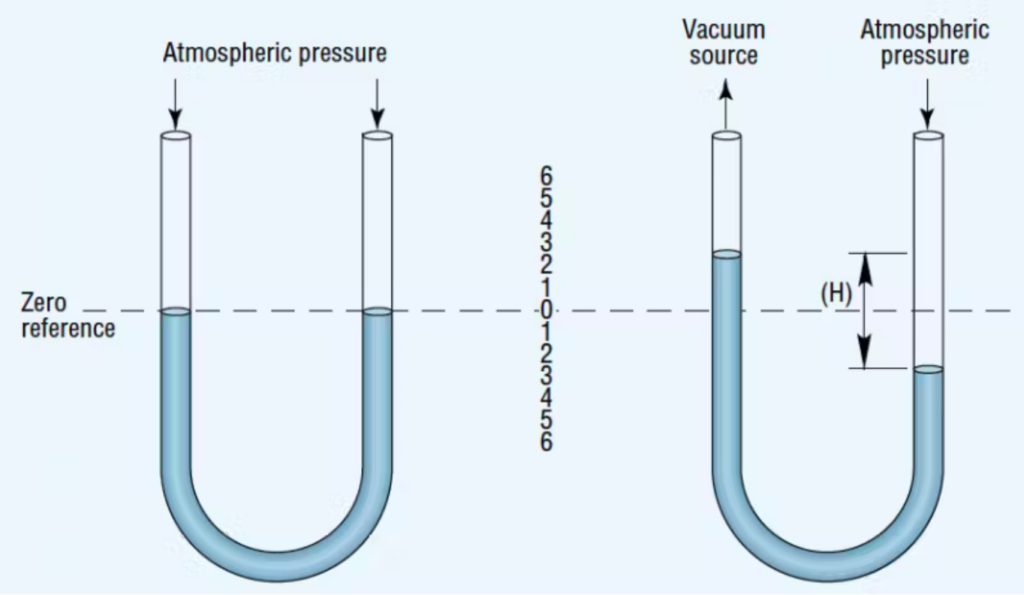

At its core, a lab vacuum is just pressure lower than the air outside. Two things decide how it performs: how low that pressure can drop (that’s the depth) and how fast it can yank air or vapors out (pumping speed). Those factors shape what you can do with it.
What Labs Do With Vacuum
Vacuum’s like the unsung hero of the lab—quietly making everything work better. You’ll see it most often in filtration and drying, but it’s got other tricks up its sleeve too.

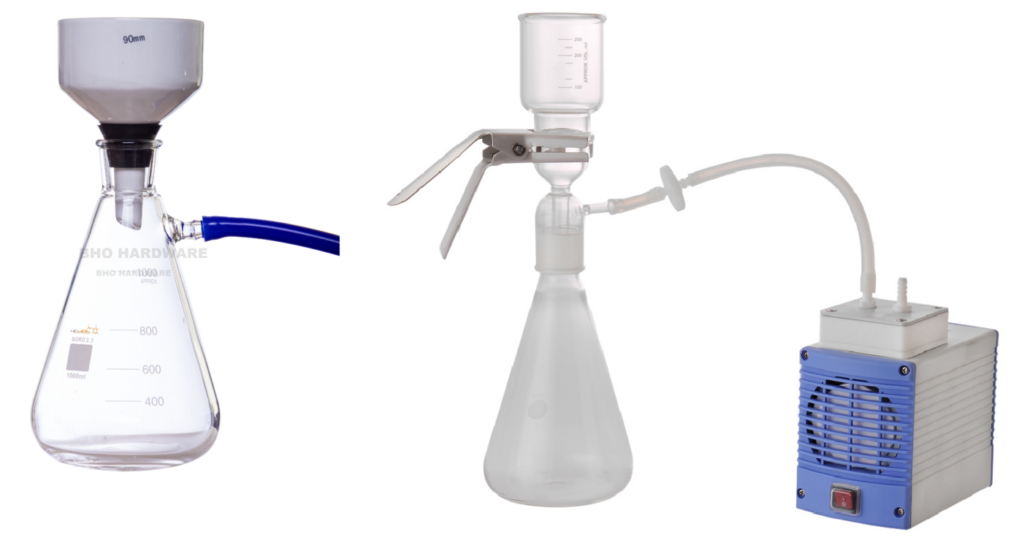

Vacuum for Filtration
Filtering with gravity is fine if you’ve got all day—like brewing coffee at home. In a lab, though? Too slow. Vacuum filtration kicks it into gear by dropping the pressure in a flask, pulling liquids through way faster. It’s a game-changer for messy solvents or stubborn solids.
Vacuum for Drying

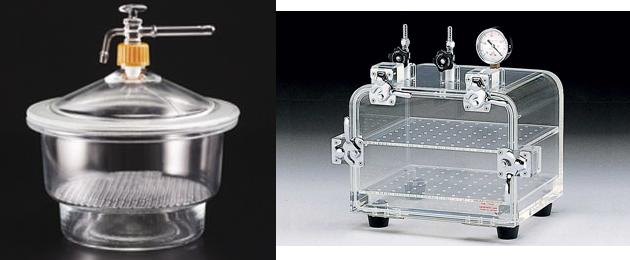

Need to dry a sample? You could let it sit out, but that’s a snooze fest. Vacuum drying speeds things up by lowering the pressure, so liquids turn to gas with less heat. Pair it with a desiccator, and you’re golden—especially for fragile stuff that’d fry under high temps.
Vacuum for Other Applications

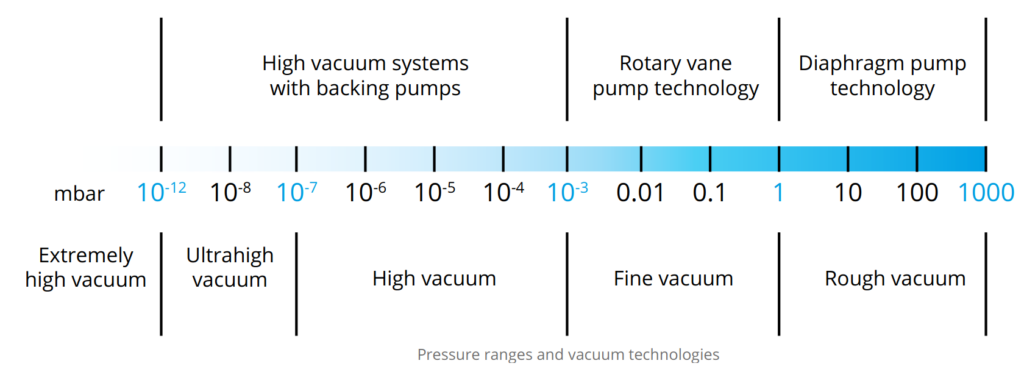

Every field’s got its own vacuum vibe. Pretty much all labs filter, but synthetic chemists lean hard on it for drying solid products—like compounds they’ve cooked up. That usually calls for a “rough vacuum,” somewhere between 1 and 1000 mbar.

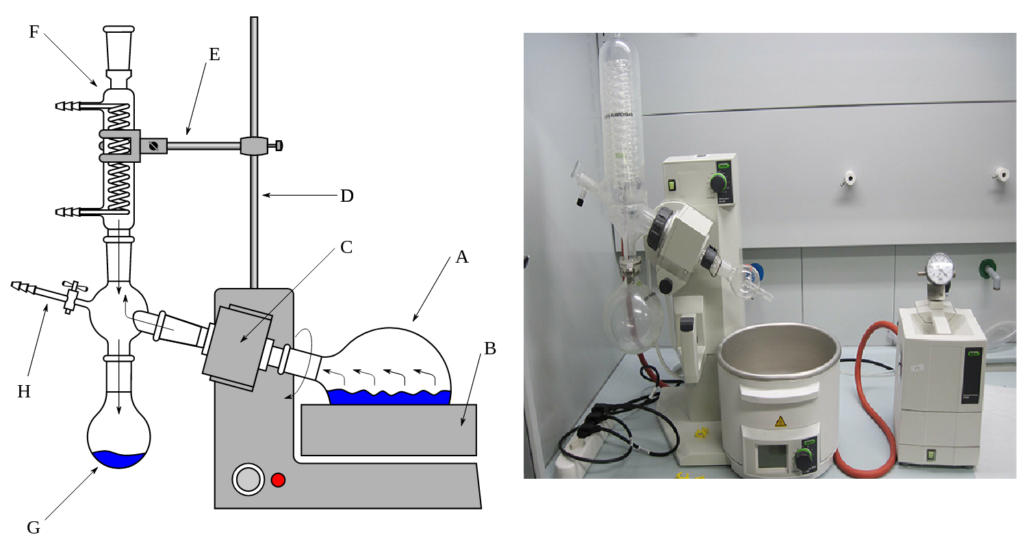

For tricks like rotary evaporation, you need tight control in that range to strip off solvents without scorching them.

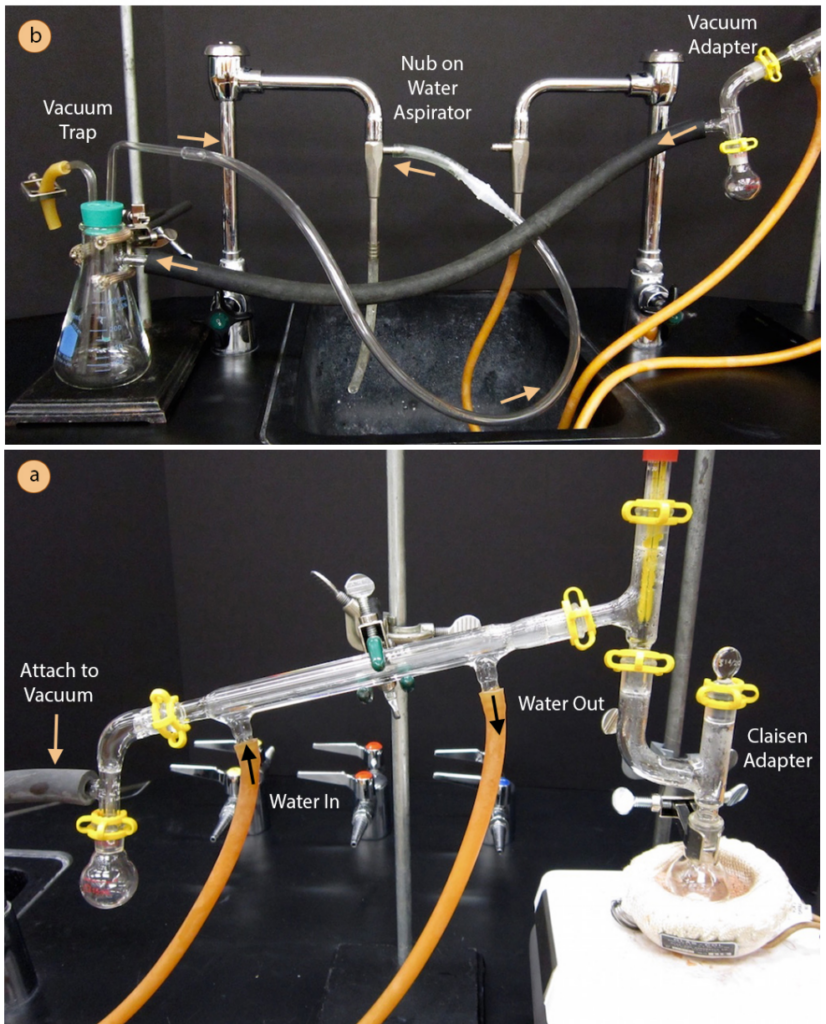

Bonus: you can even recuperate solvents from the waste. Fancy setups like Schlenk lines or vacuum distillation, though? Those demand super-low pressures for compounds that’d fall apart if you heat them too much—lower pressure means lower boiling points.
The Vacuum Pump Row
Picking a pump’s all about what your lab’s up to. Here’s the rundown:
Diaphragm Pumps

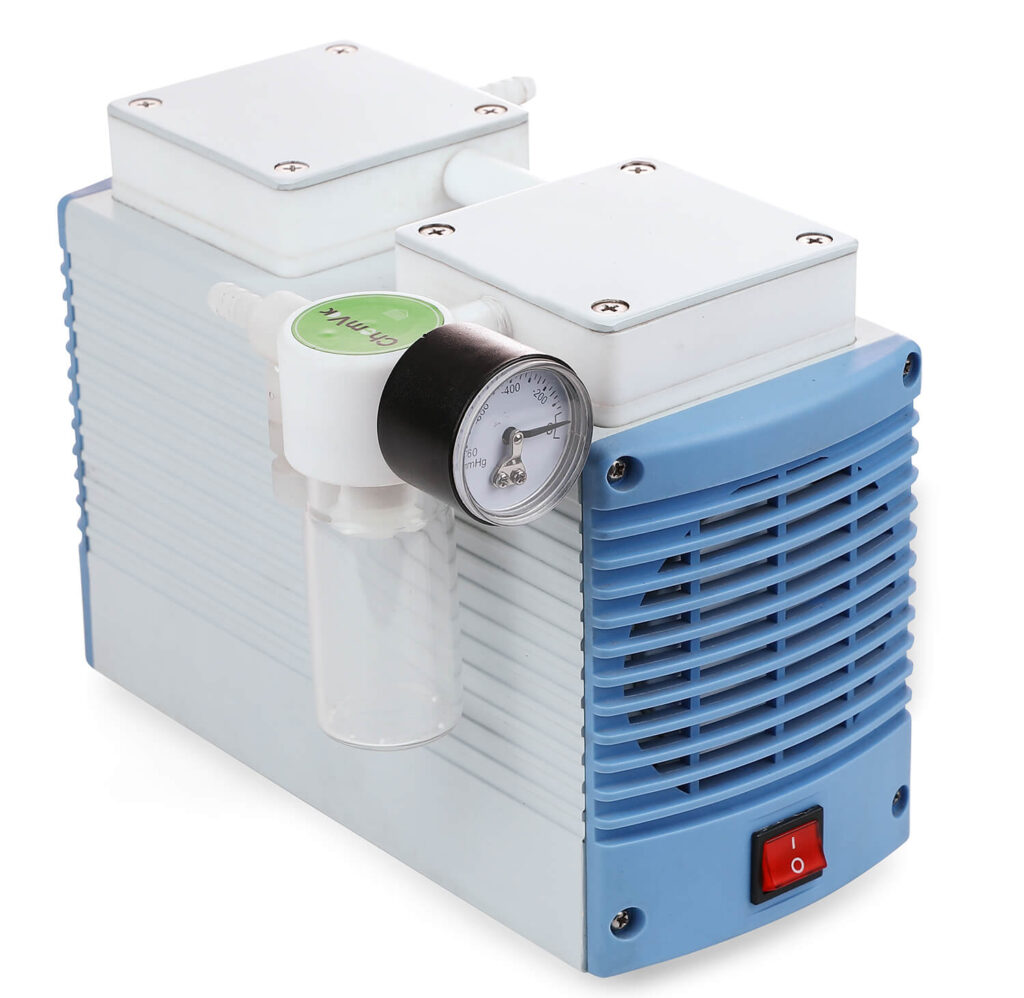

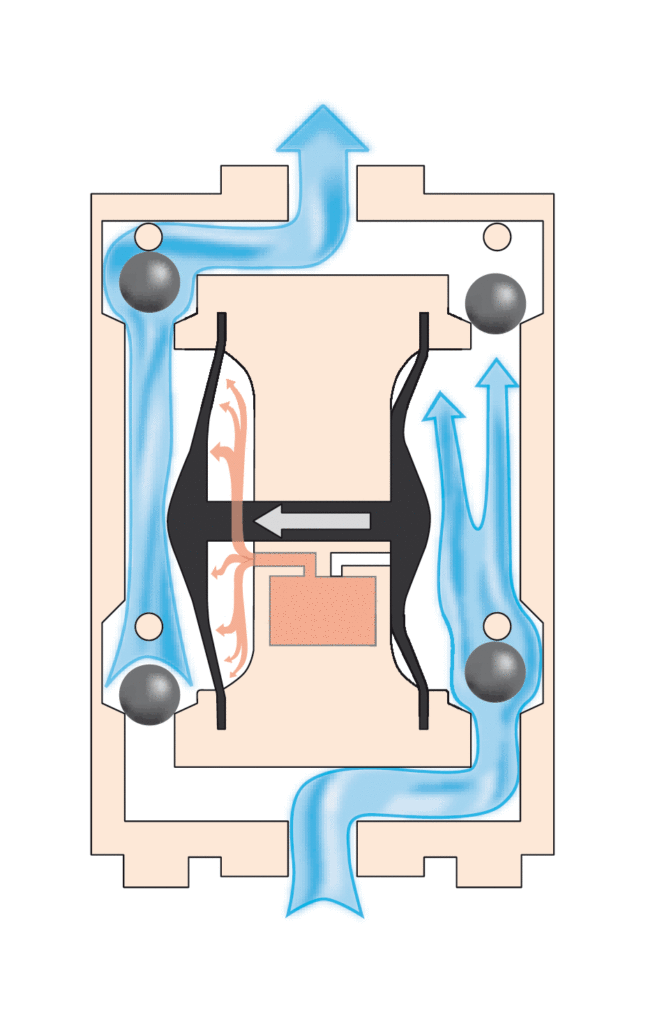

These use a flexible membrane to hit low-to-medium vacuum, down to about 1.5 mbar. They’re champs with solvents and mild corrosives—perfect for rotary evaporators. No oil to mess with, but they’re loud (50-60 dB) and need a tune-up now and then. Price? Around $450–$500.

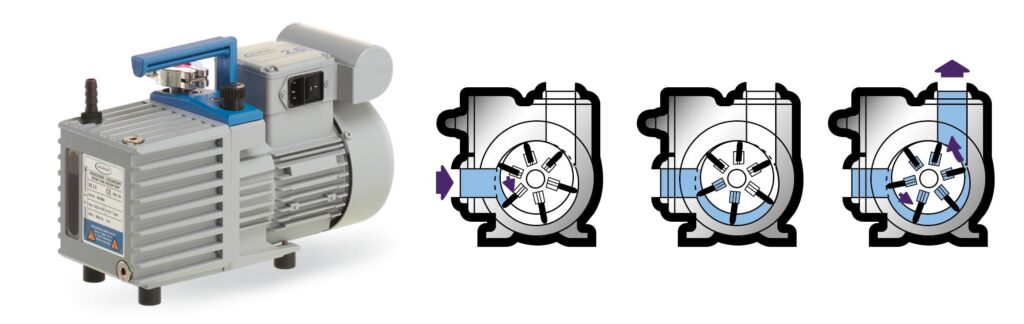

Rotary Vane Pumps
These spin vanes to pull off crazy-low pressures—think below 10⁻⁶ bar. Great for high-vacuum jobs, but they’re oil-dependent and hate solvents or corrosives unless you’ve got traps (like cold ones) to shield them. They’re wallet-friendly, starting at $150–$200.

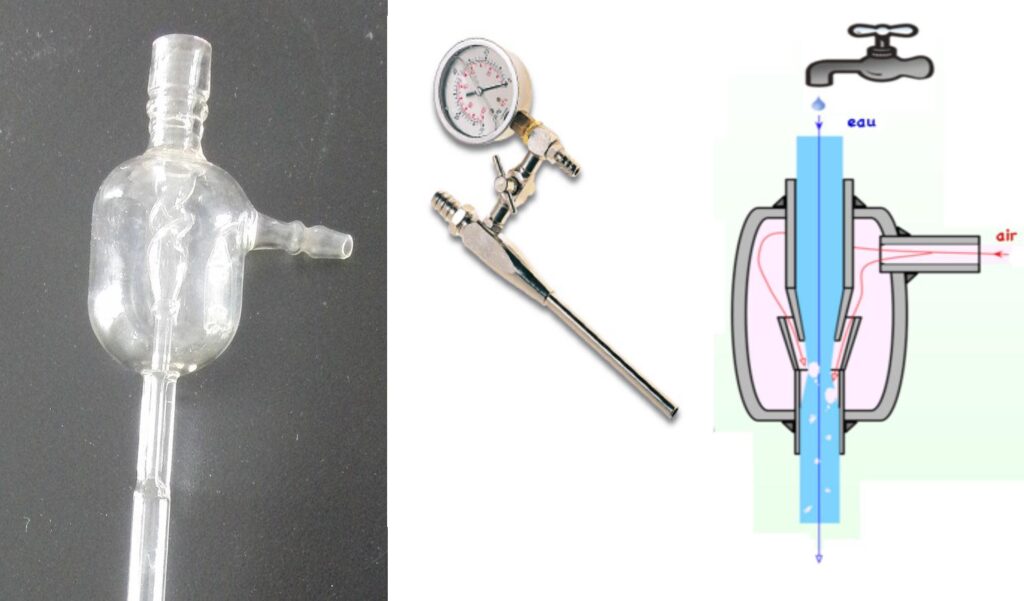

Water Jet Pumps
Picture water blasting through a nozzle to hit about 32 mbar. They’re dirt cheap ($25–$30), corrosion-proof, and tiny, but they guzzle water and spit out waste. Noisy too, and whatever you pump ends up in the drain—not exactly green.
Choosing Your Pump
For the usual suspects—evaporation, distillation, filtration—chemistry diaphragm pumps are hard to beat. They’re solid in the rough vacuum zone and a go-to for labs, especially if you’re into specialized chemistry.
Watch Your Step
Vacuum’s handy, but it’s not without risks. Pump exhaust can spew nasty vapors—vent it into a fume hood or slap on a filter. And glassware? If it’s got a crack, it might explode under vacuum. Give it a good once-over before you start.
Conclusion
In the end, vacuum systems are important for any lab worth its salt. Each lab has its own quirks, so what works for one might not cut it for another. That’s why skipping the planning stage is a rookie move—it’s like trying to fit a square peg into a round hole. Take the time to figure out what you need, whether it’s a diaphragm pump for your rotary evap or a rotary vane for those ultra-low pressures. And don’t forget, safety first. Get it right, and you’ll be cruising through experiments like a pro. Vacuum isn’t just a tool; it’s the backbone of efficient, safe lab work.
