Hydrogen Gas (H2) Preparation: A Complete Laboratory Guide

Overview

Hydrogen gas (H₂) serves as a crucial reducing agent in laboratory settings. It is frequently employed in various hydrogenation reactions during pharmaceutical synthesis, such as the conversion of P2NP to amphetamine, or in the production of medications like Dezocine (Dalgan), Levorphanol, and Racemorphan. In certain chemical processes, hydrogen gas (H₂) preparation can be used as a source of H₂ in order to substitute for harder-to-obtain reducing agents like sodium borohydride (NaBH₄) or lithium aluminium hydride (LiAlH₄).

Due to its highly flammable and explosive nature, strict safety measures must be observed when handling hydrogen gas in any setting.

Properties and Applications of Hydrogen Gas

Hydrogen gas is colorless, odorless, and only slightly soluble in water. Its solubility remains relatively unchanged with varying temperatures. The main applications of hydrogen gas include:

1. Acting as a reducing agent in organic chemistry
2. Use in fuel cells
3. Hydrogenation in industrial and laboratory chemical processes

Hydrogen Gas (H₂) Preparation in the Laboratory

Standard Method

Hydrogen Gas (H₂) synthesis in the laboratory typically involves a simple reaction between a dilute acid and a reactive metal like zinc. Zinc granules are preferred for this setup, especially when they contain trace amounts of copper. The presence of copper serves as a catalyst, accelerating the reaction rate without being consumed in the process.

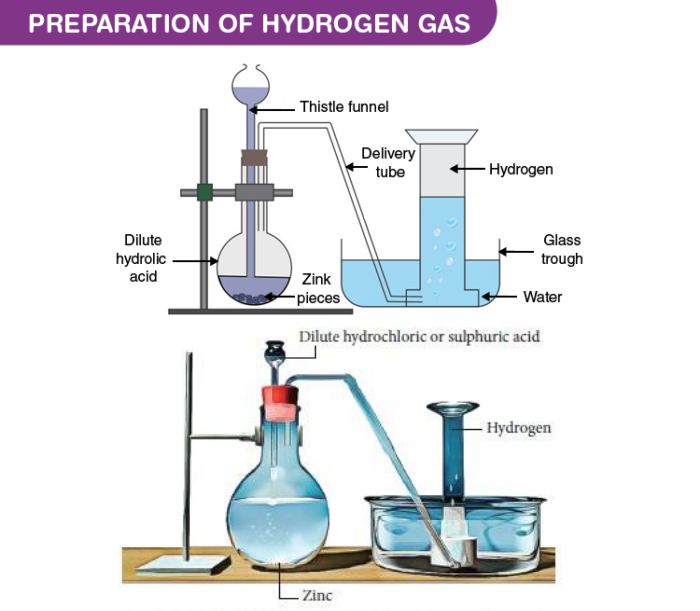

Step-by-Step Hydrogen Gas (H₂) Preparation Process

Materials Needed:

1. Zinc granules
2. Dilute hydrochloric acid (HCl) or dilute sulfuric acid (H₂SO₄)
3. 500 mL flask
4. Thistle funnel
5. Delivery tube and water trough

Procedure:

1. Add a few grams of zinc granules to the flask.
2. Use a thistle funnel to slowly introduce dilute hydrochloric acid. Sulfuric acid may also be used if HCl is unavailable.
3. Hydrogen gas will begin to evolve immediately and can be collected via downward displacement of water, leveraging the fact that hydrogen is less dense than water.

Chemical Reactions Involved:

• With HCl:
  Zn + 2HCl → ZnCl₂ + H₂
• With H₂SO₄:
  Zn + H₂SO₄ → ZnSO₄ + H₂

Important Safety Measures

Before collecting hydrogen gas, ensure all air is purged from the apparatus. This step is crucial, as the presence of air can result in explosive mixtures with hydrogen. Always carry out the preparation in a well-ventilated area or under a fume hood.

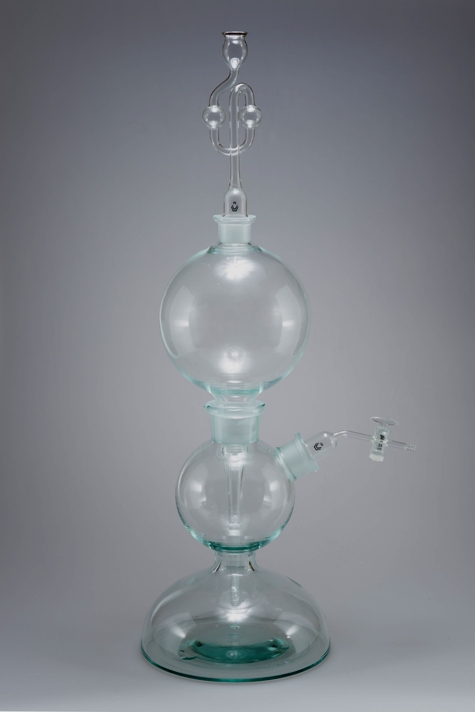

Kipp’s Apparatus: Controlled Hydrogen Gas (H₂) Preparation

Historically, Kipp’s apparatus (or Kipp generator), developed by Dutch pharmacist Petrus Johannes Kipp (1808–1864), was widely used for H₂ gas preparation and on-demand gas supply. Though largely replaced today by more modern setups, it still serves as an educational example of controlled gas production.

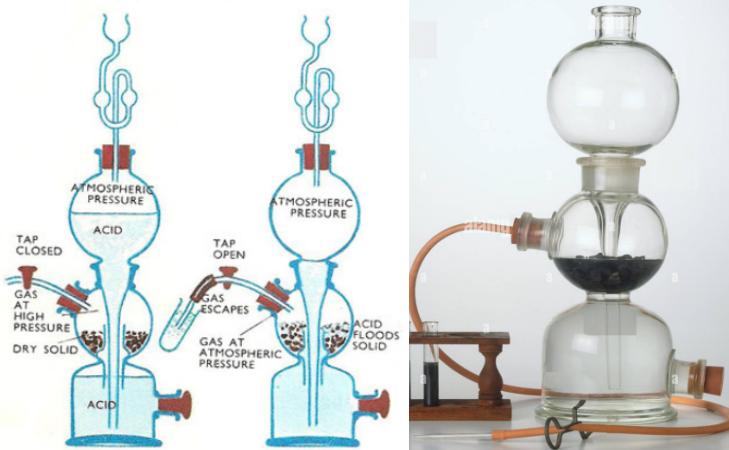

Structure and Function

This glass apparatus, typically about 0.5 meters tall, consists of three interconnected chambers. Zinc is placed in the central bulb, and acid is introduced via the top funnel. When the stopcock is closed, gas pressure builds up, pushing the acid back into the reservoir and halting the reaction. Opening the valve releases pressure, allowing acid to flow back and resume gas generation.

Gases Commonly Generated Using Kipp’s Apparatus:

• Hydrogen gas – from zinc and acid
• Carbon dioxide – from marble chips and acid
• Hydrogen sulfide – from ferrous sulfide and acid

This apparatus is not suitable for gases that require heating, as its glass construction is not heat-resistant.

Kipp’s apparatus – Animation by mySSC.in

Maintenance and Safety for Kipp’s Apparatus

Over time, both the acid and solid reagents become depleted. The apparatus should be cleaned and recharged in a fume hood to avoid inhalation of harmful gases, particularly when generating hydrogen sulfide, which emits a toxic, foul odor.

Conclusion

Hydrogen Gas (H₂) Preparation is a foundational technique in laboratory chemistry, with wide-ranging applications from synthesis to fuel cells. Whether using traditional acid-metal reactions or controlled systems like the Kipp’s apparatus, careful attention to safety and procedure ensures reliable and efficient hydrogen gas generation.

Sources

1. Wesbrook, F. F. “LABORATORY METHODS AND DEVICES.” The Journal of Infectious Diseases (1905): 304-324. https://www.jstor.org/stable/24715050?seq=1
2. Kipp’s apparatus https://www.daviddarling.info/encyclopedia/K/Kipps_apparatus.html
3. Wikipedia https://en.wikipedia.org/wiki/Kipp%27s_apparatus
