What is Reflux Condenser?​

In the field of chemistry, a condenser is a vital laboratory device used to transform gaseous vapors into liquids by lowering their temperature. These apparatuses are integral to various lab techniques, such as distillation, reflux, and extraction processes. During distillation, a mixture is heated to evaporate its more volatile components, which are then cooled and collected as liquids in a separate vessel. In reflux operations, reactions involving volatile liquids are maintained at their boiling points to speed up the process, with the resulting vapors being cooled and returned to the reaction container. In Soxhlet extraction, a heated solvent is applied to powdered materials, such as crushed roots or leaves, to extract compounds with low solubility. The solvent is then distilled, cooled, and reapplied in a continuous cycle.

A Brief Introduction to Refluxing

A variety of condenser designs have been developed to meet different needs and processing capacities. The most basic design involves a long tube through which vapors pass, cooled by ambient air. More advanced condensers feature an additional tube or chamber that circulates water or another cooling fluid to improve heat dissipation.

How Reflux Condenser Functions

When designing or maintaining systems that utilize condensers, it’s critical to ensure that the heat from incoming vapors does not exceed the cooling capacity of the condenser and its cooling mechanism. Proper thermal gradients and material flow management are essential for effective operation. In essence, a reflux condenser must efficiently condense vapors back into liquid form.

Temperature Considerations

For a gas to condense into a liquid, its pressure must surpass the vapor pressure of the surrounding liquid, meaning the liquid must remain below its boiling point at the given pressure. Typically, the liquid forms a thin film on the condenser’s inner surface, adopting a temperature close to that of the surface itself. Thus, selecting or designing a condenser requires ensuring that its inner surface remains cooler than the liquid’s boiling point.

Heat Transfer

As vapors condense, they release heat known as the heat of vaporization, which can raise the temperature of the condenser’s inner surface. To maintain an adequately low temperature, especially at peak condensation rates, the condenser must rapidly dissipate this heat. This can be achieved by increasing the condensation surface area, using a thinner condenser wall, or incorporating an efficient heat sink, such as circulating water, on the opposite side of the condenser.

Material Flow Management

The condenser must be appropriately sized to handle the maximum expected outflow of condensed liquid, matching the rate of incoming vapor. Care must be taken to prevent boiling liquid from entering the condenser, which can occur due to sudden boiling or droplet formation from bursting bubbles.

Handling Carrier Gases

When the gas entering the condenser contains a mix of gases with significantly lower boiling points, as seen in processes like dry distillation, the condensation temperature must account for the vapor’s partial pressure within the mixture. For example, if the incoming gas consists of 25% ethanol vapor and 75% carbon dioxide (by moles) at 100 kPa, the condenser surface must be kept below 48 °C, the boiling point of ethanol at 25 kPa.

Additionally, when the gas is not purely vapor, a gas layer with reduced vapor content forms near the condensing surface, further lowering the boiling point. Effective condenser design ensures thorough gas mixing or forces the gas to pass close to the condensing surface.

Coolant Flow Configurations

Condensers are generally classified into two types:

• Concurrent Condensers: These allow vapors to enter through one inlet and the condensed liquid to exit via a separate outlet, commonly used in simple distillation setups. They are typically oriented vertically or at an angle, with vapor entering at the top and liquid exiting at the bottom.

• Countercurrent Condensers: These direct the condensed liquid back toward the vapor source, as required in reflux and fractional distillation. Positioned vertically above the vapor source, they allow the liquid to flow back via gravity.

These classifications are not mutually exclusive, as many condenser types can operate in either mode.

The Liebig Condenser

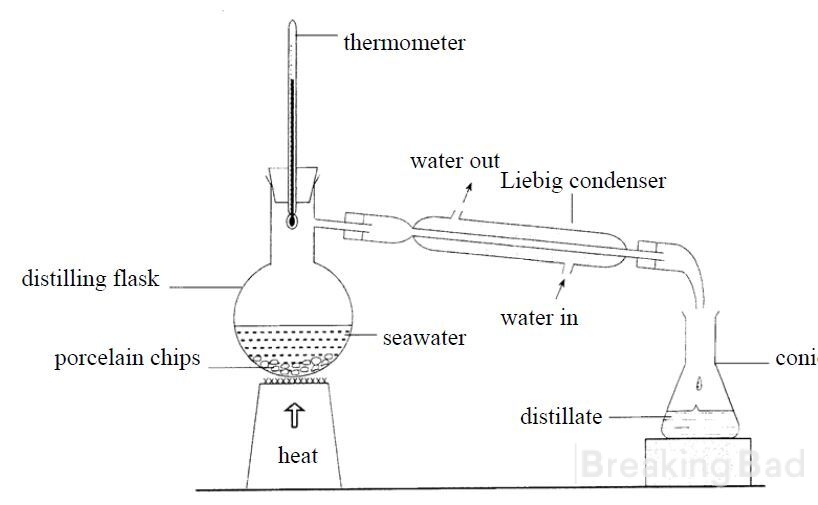

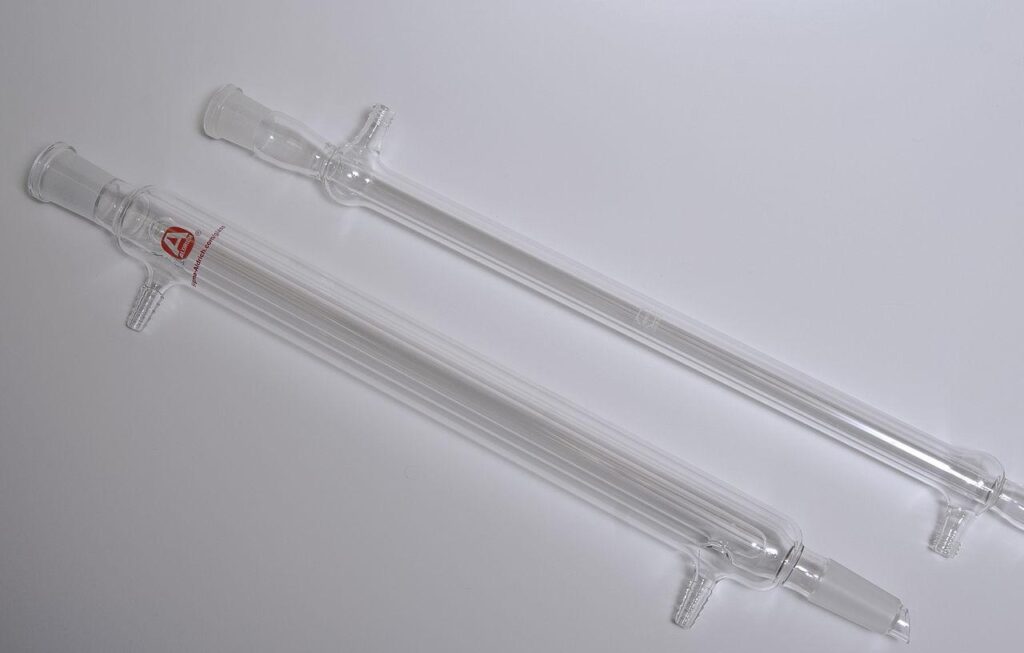

Named after Justus von Liebig, the Liebig condenser is a simple yet effective design that uses a circulating coolant. It improves upon earlier designs by Weigel and Göttling, offering affordability and ease of construction. The condenser consists of two concentric glass tubes: a longer inner tube for vapor and liquid flow, and an outer tube sealed at the ends to form a water jacket. Side ports near the ends allow coolant to enter and exit. Compared to a basic air-cooled tube, the Liebig condenser excels at removing heat and maintaining a consistently low inner surface temperature.

Applications of Reflux Condensers

Reflux condensers are widely used in various chemical syntheses, including methamphetamine production from P2P via aluminum amalgam or NaBH4 reduction, amphetamine synthesis from P2NP using Al/Hg, and MDMA synthesis from sassafras oil. These processes rely on condensers to cool and return solvent vapors to the reaction vessel.

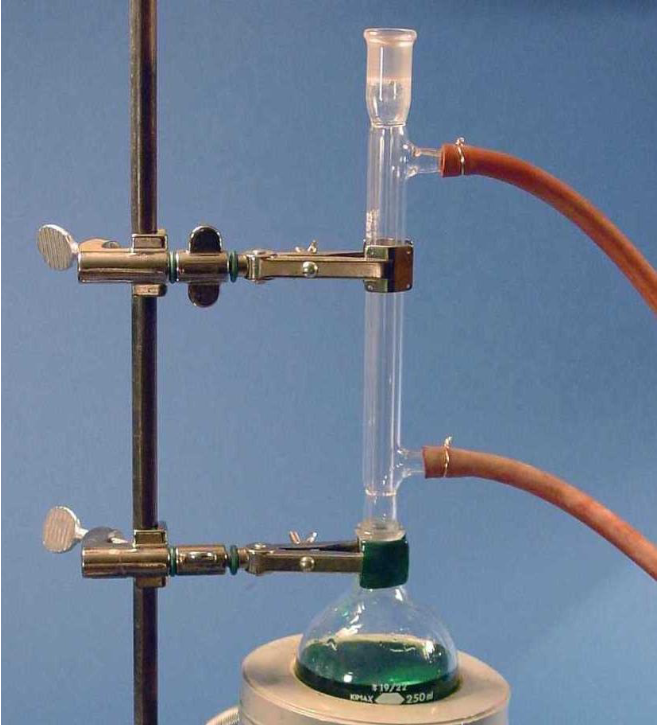

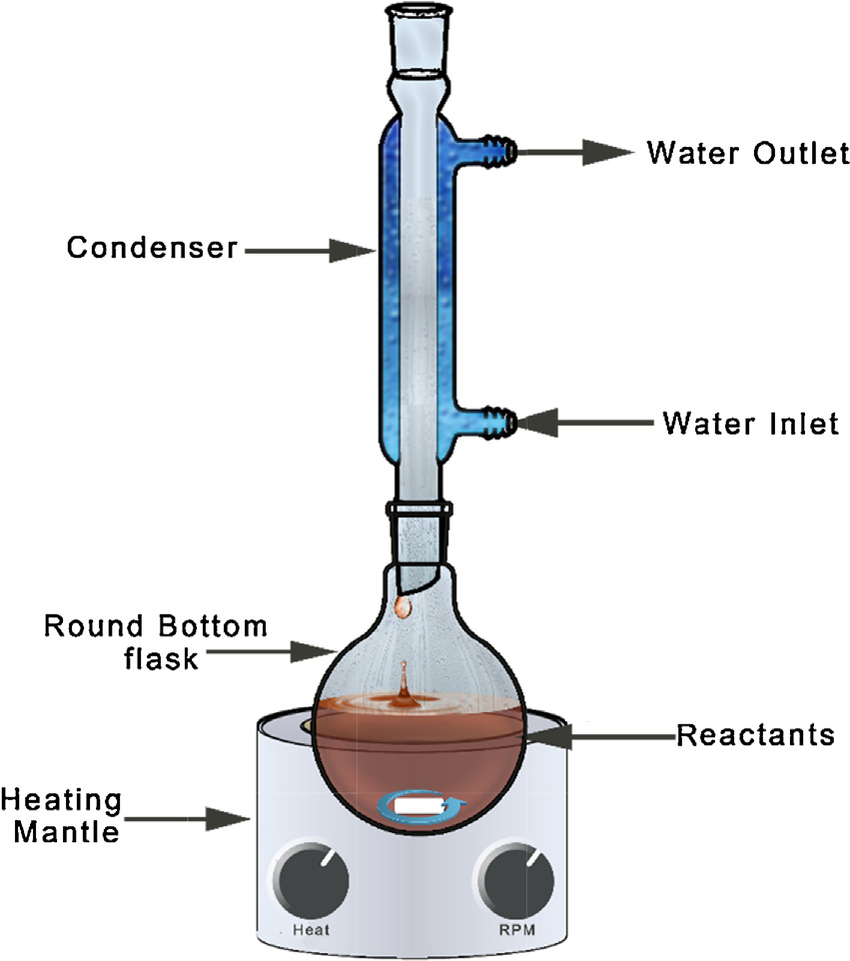

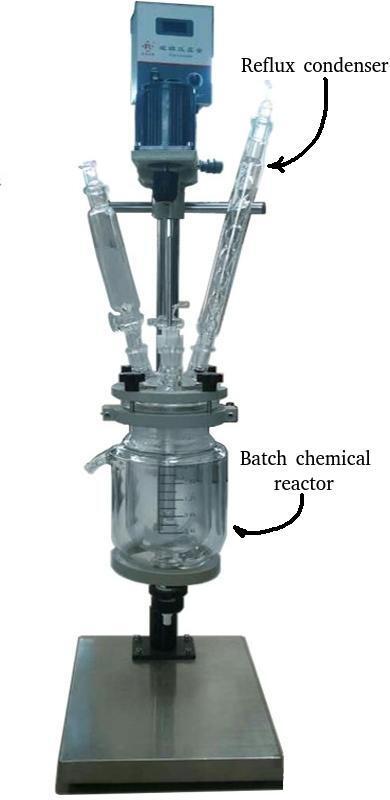

To set up a reflux condenser, it is attached to the reaction vessel, with a cold water source connected to the bottom inlet via a silicone or rubber hose. An outlet hose is connected to the top tap. For small-scale setups, a bucket with ice and water paired with an aquarium pump can serve as a cooling source. For larger-scale operations or when enhanced cooling is needed, a laboratory chiller can be used. Chillers employ vapor-compression or absorption refrigeration cycles to cool a liquid, which is then circulated through the condenser to cool solvent vapors effectively.

Conclusion

Reflux condensers, like the trusty Liebig, are the unsung heroes of the chemistry lab, quietly ensuring reactions stay on track by taming unruly vapors into manageable liquids. Their clever design and versatility make them indispensable for everything from small-scale experiments to complex syntheses. Whether you’re running a backyard setup with an ice bucket or a high-tech operation with a chiller, these devices prove that sometimes the simplest ideas—like cooling things down—can make all the difference in unlocking the magic of chemistry.
