Nutsche Filters: Overview and Industrial Applications

Introduction

Nutsche filters are among the most straightforward types of batch filtration systems, operating either under vacuum or with applied pressure. In these systems, gravitational force and the movement of the liquid being filtered act in the same direction, allowing for efficient separation. Commonly utilized in laboratory setups and small-scale production environments, Nutsche filters are valued for their versatility and simplicity.

This article focuses on the basic versions of Nutsche filters and does not cover the more advanced designs that incorporate stirring mechanisms, integrated drying, or heating/cooling systems typically used in industrial-scale facilities, due to their complexity and maintenance demands.

Nutsche Filter Basic Construction and Working Principle

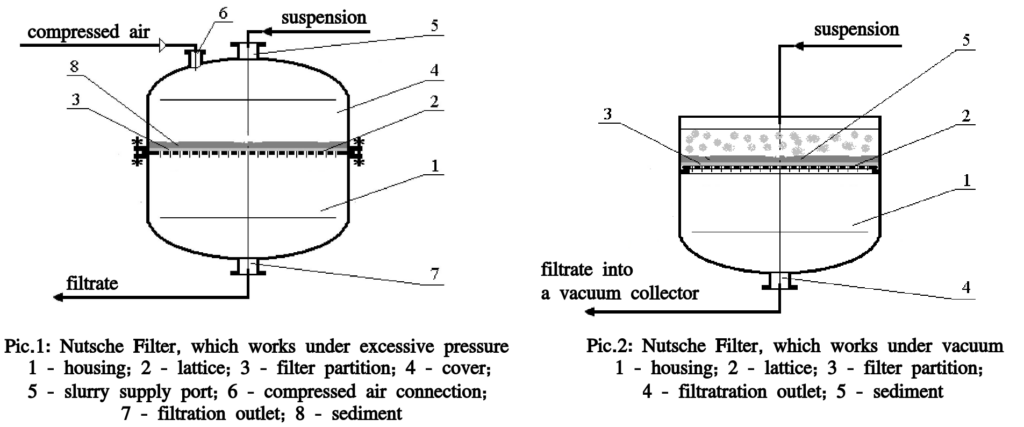

The primary body of a Nutsche filter (refer to Figures 1 and 2) is a vertical cylindrical chamber. It can be open at the top (for vacuum models) or sealed (for pressure versions, often called druk filters). Inside, there is a perforated support plate or grid known as the false bottom. A filtration medium, typically a fabric or mesh, is laid on this grid.

In vacuum-based models, the space below the filter medium is connected to a vacuum pump through a filtrate collection vessel. The mixture to be filtered is introduced above the filter bed. In contrast, a druk Nutsche filter functions by using excess pressure—either by pumping the slurry or by introducing compressed air or inert gas into the upper chamber.

Filtration continues until a certain layer of solid residue forms on the filter medium. Once this limit is reached, feeding stops, and the collected solids can be washed, air-dried or otherwise processed. Afterward, the filtration medium is cleaned or replaced, and the cycle can begin anew.

Vacuum Nutsche filters are especially effective when working with suspensions that contain a high percentage of solids. Pressurized Nutsche filters are more suited for separating finer, more diluted suspensions. To aid with discharging the collected material, the pressure filter versions often feature detachable lower sections that can be rotated for easy emptying.

The strengths of vacuum-operated Nutsche filters lie in their simple construction and the thorough washing they allow. Their main limitation is relatively low throughput compared to continuous filtration systems.

Use of Nutsche Filters in Drug Synthesis

In the synthesis of controlled substances or potent pharmaceuticals, filtration is a critical step. In many production workflows, vacuum filtration is essential for speeding up separation and improving yield.

For very small quantities—just a few grams—a basic setup with filter paper is sufficient. However, when processing hundreds or thousands of grams, more robust equipment is needed. A Büchner funnel system has limitations in terms of volume, speed, and convenience, especially when the funnel and flask must be emptied and cleaned frequently.

Nutsche filters become necessary when scaling up to multi-kilogram quantities. Their larger capacity, faster filtration speed, and overall ease of use make them indispensable in high-volume processing. These benefits are particularly exploited in illicit drug manufacturing processes involving substances such as Amphetamine, Methamphetamine, MDMA, Mephedrone, and synthetic cathinones like α-PVP, due to their efficiency and adaptability.

Structural Features of Nutsche Filters

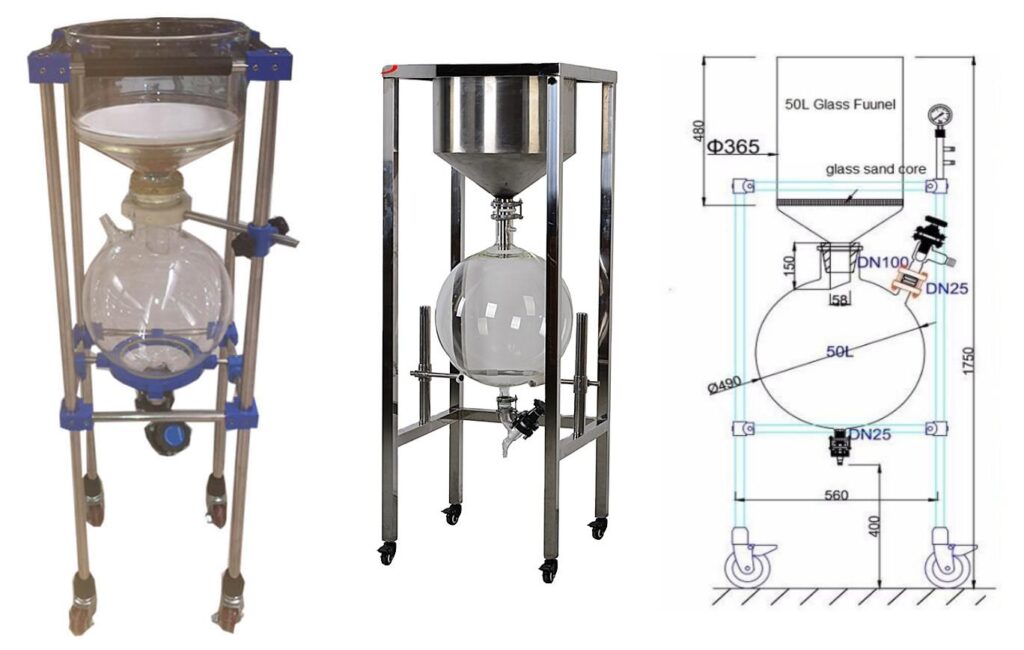

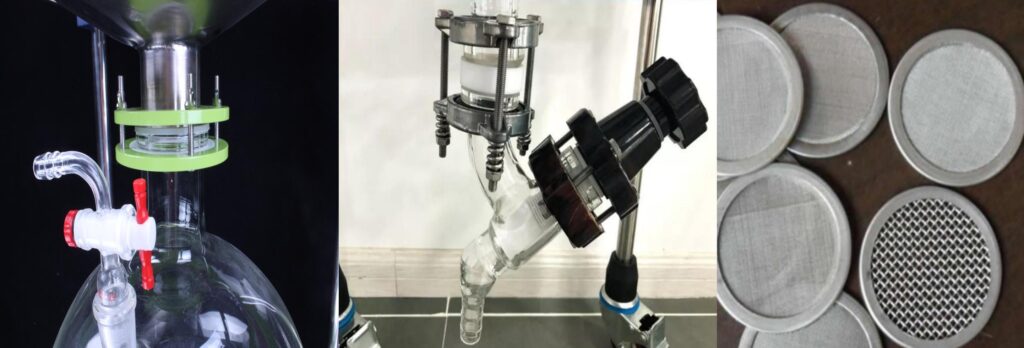

The body of a typical Nutsche filter is constructed from borosilicate glass or other chemical-resistant materials. The filtration surface itself can be made from fluoropolymer, stainless steel mesh, sintered glass, or filter fabric. Standard Nutsche filter components include:

• A main chamber with a support grid (false bottom)
• A removable or fixed filter cloth or disc
• Corrosion-resistant hardware
• Optional accessories like stirrers or heating jackets

Some units are additionally coated with enamel, rubber, or plastic for improved durability. These features distinguish Nutsche filters from other common laboratory or industrial filtration systems.

Vacuum is generated using a rotary vane pump or similar apparatus, enabling quick and efficient filtration cycles.

Advantages of Using Nutsche Filters

• Enhanced Operator Safety: Minimal contact with materials allows for sterile operations and handling of toxic or hazardous compounds.
• Thermal Control Options: Units can be heated to prevent crystallization or cooled to promote precipitation.
• Light-Sensitive Applications: Tinted glass can be used to protect photosensitive substances.
• High Filtration Efficiency: Effective phase separation between solids and liquids.
• Ease of Use: Simple construction minimizes the need for complex or costly components.
• Durability: Long operational lifespan with minimal maintenance.

Filtration Process Steps with a Nutsche Filter

1. Loading the vessel with the desired suspension.
2. Performing the filtration under vacuum or pressure.
3. Introducing a washing solvent.
4. Washing and optionally drying the solid residue.
5. Removing the filter cake and cleaning or replacing the filter medium.

FILTRE NUTSCHE

Choosing the Right Nutsche Filter

Selecting the optimal Nutsche filter involves several factors:

• Manufacturer and Budget: Identify a trusted supplier within your price range.
• Capacity Requirements: Choose the appropriate filter size based on the batch volume you intend to process.
• Operation Mode: Decide whether vacuum or pressure operation suits your application better.
• Material Compatibility: Ensure that construction materials are suitable for the chemical nature of your suspensions.

Whether you’re running a research lab or a small-scale production facility, Nutsche filters offer a practical and reliable solution for solid-liquid separation.

Conclusion

Nutsche filters offer a reliable and efficient solution for solid-liquid separation in both laboratory and small-scale industrial environments. Their straightforward design, adaptability for vacuum or pressure operation, and ability to handle a wide range of chemical substances make them an essential tool in chemical synthesis, pharmaceutical production, and other filtration-intensive processes. Whether used for routine laboratory work or scaled-up manufacturing, Nutsche filters stand out for their operational safety, high-quality output, and long-term durability. By choosing the right configuration and materials, users can optimize filtration performance while maintaining simplicity and ease of maintenance.
